دیتاشیت SN74LS05N
مشخصات دیتاشیت
| نام دیتاشیت | SN54LS/S05, SN74(LS/S)05 |
|---|---|
| حجم فایل | 1254.608 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت SN54LS/S05, SN74(LS/S)05 |

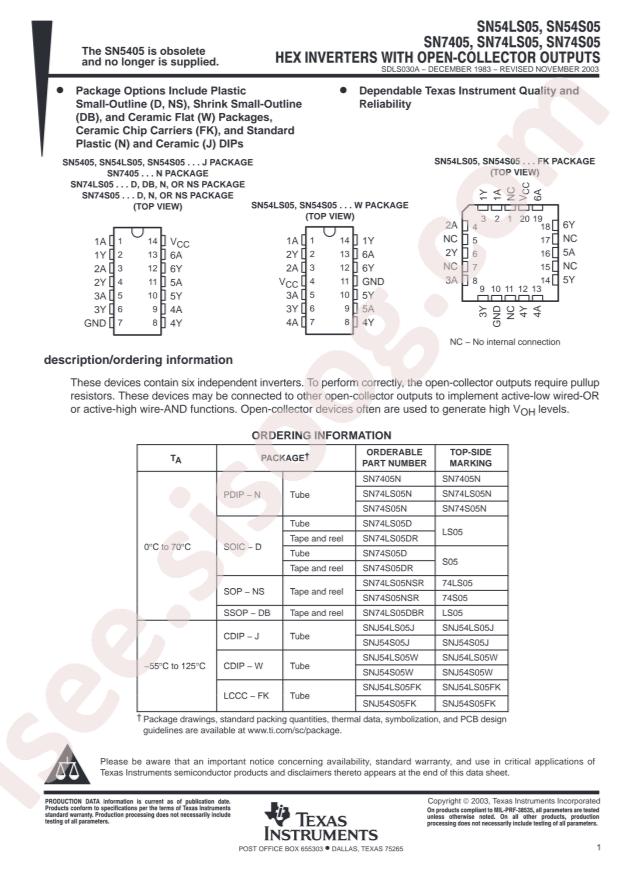

SN54LS/S05, SN74(LS/S)05 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LS
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments SN74LS05N
- Input Type: -
- Sink Current: 8mA
- Source Current: -
- Number of Inputs: 1
- Number of Circuits: 6
- Low level range (VIL): 0.8V
- Max Propagation Delay: 32ns@5V,15pF
- Operating Temperature: 0°C~+70°C
- High level range (VIH): 2V
- Supply Voltage(Single): 4.75V~5.25V
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Mounting Type: Through Hole
- Logic Level - Low: 0.8V
- Voltage - Supply: 4.75V ~ 5.25V
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Logic Level - High: 2V
- Part Status: Active
- Current - Output High, Low: -, 8mA
- Features: Open Collector
- Base Part Number: SN74LS05
- Supplier Device Package: 14-PDIP
- Logic Type: Inverter
- Max Propagation Delay @ V, Max CL: 32ns @ 5V, 15pF
- detail: Inverter IC 6 Channel Open Collector 14-PDIP
