دیتاشیت SN74LS123N

SN54/74(LS)122/23/30

مشخصات دیتاشیت

نام دیتاشیت SN54/74(LS)122/23/30
حجم فایل 1508.663 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

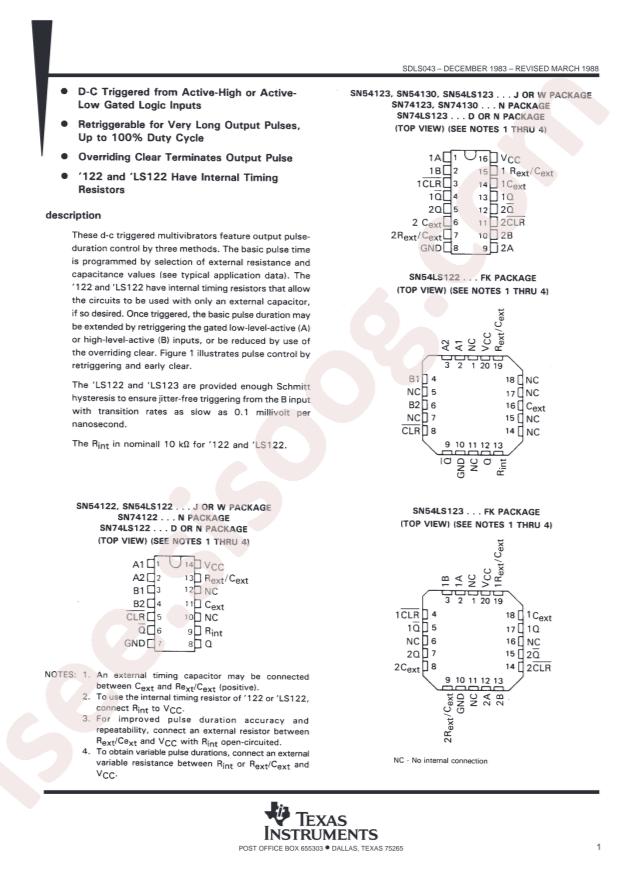

دانلود دیتاشیت SN54/74(LS)122/23/30

SN54/74(LS)122/23/30 Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Monostable Multivibrators
  • Datasheet: Texas Instruments SN74LS123N
  • Input Type: -
  • Logic Family: 74LS
  • Sink Current: 8mA
  • Source Current: 400uA
  • Supply Voltage: 4.75V~5.25V
  • Logic Gate Type: Monostable
  • Propagation Delay: 28ns
  • Number Of Channels: 2
  • OperatingTemperature: 0°C~+70°C
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Independent Circuits: 2
  • Logic Type: Monostable
  • Part Status: Active
  • Operating Temperature: 0°C ~ 70°C
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Current - Output High, Low: 400µA, 8mA
  • Series: 74LS
  • Base Part Number: SN74LS12
  • Supplier Device Package: 16-PDIP
  • Schmitt Trigger Input: No
  • Voltage - Supply: 4.75V ~ 5.25V
  • detail: Monostable Multivibrator 28ns 16-PDIP
