دیتاشیت UC3524AN

UC1524A, UC2524A, UC3524A

مشخصات دیتاشیت

نام دیتاشیت UC1524A, UC2524A, UC3524A
حجم فایل 4230.145 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت UC1524A, UC2524A, UC3524A

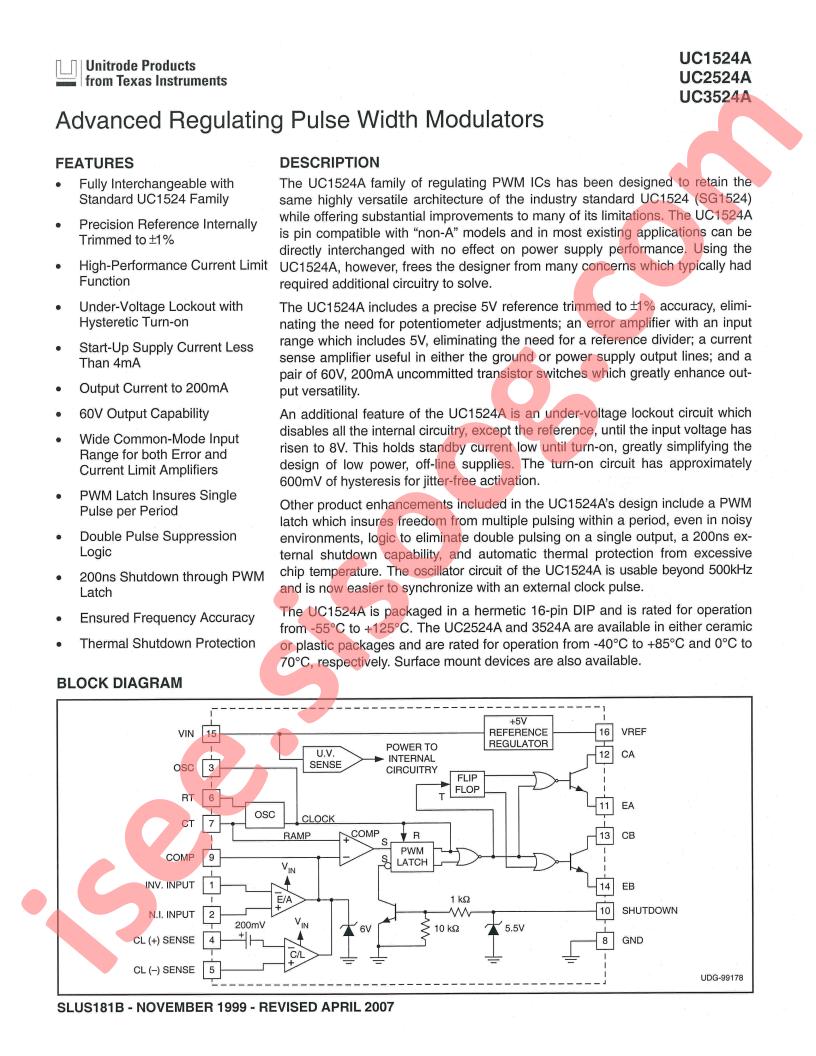

UC1524A, UC2524A, UC3524A Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Step-down;Boost;Flyback;Forward;Full-Bridge;Half-Bridge;Push-pull
  • Datasheet: Texas Instruments UC3524AN
  • Supply Voltage: 8V~40V
  • Switching Frequency: 500kHz
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Packaging: Tube
  • Frequency - Switching: 500kHz
  • Supplier Device Package: 16-PDIP
  • Number of Outputs: 2
  • Serial Interfaces: -
  • Synchronous Rectifier: No
  • Function: Step-Up, Step-Down, Step-Up/Step-Down
  • Clock Sync: No
  • Operating Temperature: 0°C ~ 70°C (TA)
  • Mounting Type: Through Hole
  • Output Configuration: Positive
  • Base Part Number: UC352
  • Series: -
  • Output Type: Transistor Driver
  • Control Features: Frequency Control
  • Output Phases: 1
  • Duty Cycle (Max): 45%
  • Voltage - Supply (Vcc/Vdd): 8V ~ 40V
