دیتاشیت SN75374N

SN75374

مشخصات دیتاشیت

نام دیتاشیت SN75374
حجم فایل 532.837 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت SN75374

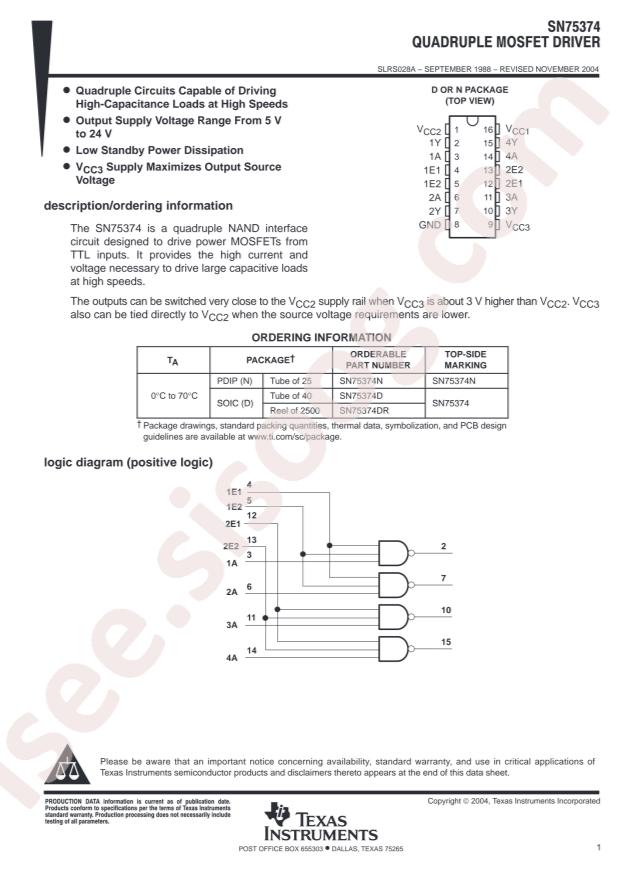

SN75374 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments SN75374N
  • Fall Time: 20ns
  • Load Type: MOSFET
  • Rise Time: 20ns
  • Supply Voltage: 4.75V~28V
  • Number of Drivers: 4
  • Driven Configuration: Low Side
  • Operating Temperature: 0°C~+150°C@(Tj)
  • Peak Output Current(sink): 500mA
  • Peak Output Current(source): 500mA
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Channel Type: Independent
  • Input Type: Inverting
  • Voltage - Supply: 4.75V ~ 28V
  • Series: -
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Part Status: Active
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Rise / Fall Time (Typ): 20ns, 20ns
  • Gate Type: N-Channel MOSFET
  • Base Part Number: SN753
  • Supplier Device Package: 16-PDIP
  • Current - Peak Output (Source, Sink): 500mA, 500mA
  • detail: Low-Side Gate Driver IC Inverting 16-PDIP
