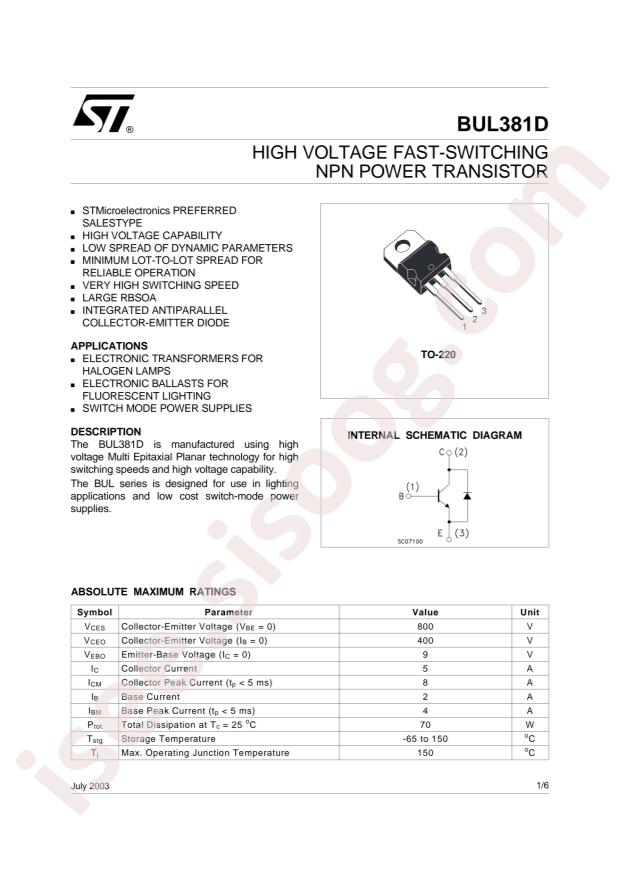

دیتاشیت BUL381D
مشخصات دیتاشیت
| نام دیتاشیت |
BUL381D
|
| حجم فایل |
210.923
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
STMicroelectronics BUL381D
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
5A
-
Power Dissipation (Pd):
70W
-
Transition Frequency (fT):
-
-
DC Current Gain (hFE@Ic,Vce):
8@2A,5V
-
Collector Cut-Off Current (Icbo):
-
-
Collector-Emitter Breakdown Voltage (Vceo):
400V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
1.1V@3A,750mA
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
5A
-
Voltage - Collector Emitter Breakdown (Max):
400V
-
Vce Saturation (Max) @ Ib, Ic:
1.1V @ 750mA, 3A
-
Current - Collector Cutoff (Max):
250µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
8 @ 2A, 5V
-
Power - Max:
70W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
BUL381
-
detail:
Bipolar (BJT) Transistor NPN 400V 5A 70W Through Hole TO-220AB
