دیتاشیت SN74ALS273N

SN54ALS273, SN74ALS273

مشخصات دیتاشیت

نام دیتاشیت SN54ALS273, SN74ALS273
حجم فایل 1314.937 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت SN54ALS273, SN74ALS273

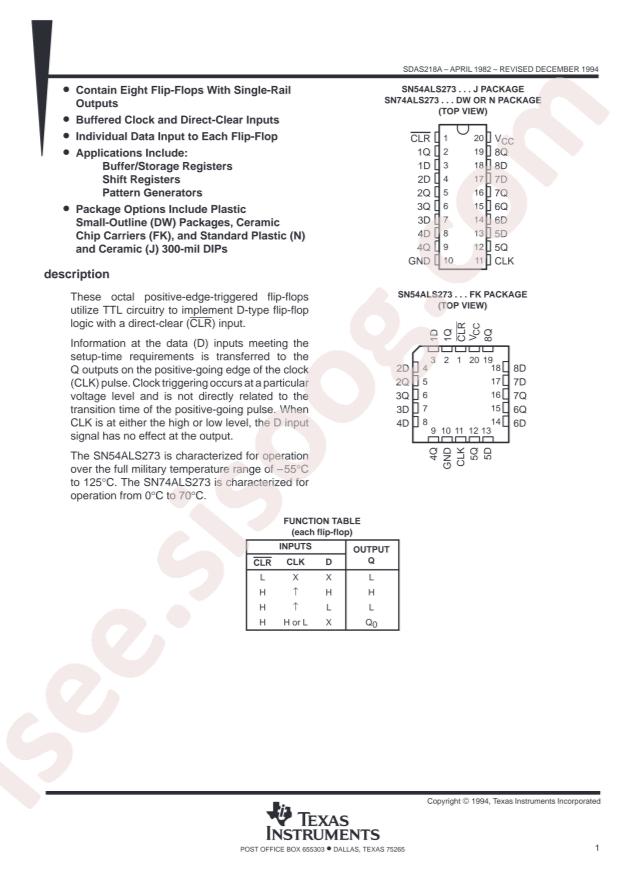

SN54ALS273, SN74ALS273 Datasheet

مشخصات

  • RoHS: true
  • Type: D-Type
  • Series: 74ALS
  • Category: Logic ICs/Flip Flops
  • Function: Reset
  • Datasheet: Texas Instruments SN74ALS273N
  • Output Type: Non-Inverted
  • Sink Current: 24mA
  • Trigger Type: 上升沿
  • Source Current: 2.6mA
  • Supply Voltage: 4.5V~5.5V
  • Clock Frequency: 35MHz
  • Input Capacitance: -
  • Number of Elements: 1
  • Operating Temperature: 0°C~+70°C
  • Quiescent Current (Iq): 20mA
  • Maximum Propagation Delay: 15ns@5V,50pF
  • Number of Bits per Element: 8
  • Package: PDIP-20
  • Manufacturer: Texas Instruments
  • Supplier Device Package: 20-PDIP
  • Current - Output High, Low: 2.6mA, 24mA
  • Voltage - Supply: 4.5V ~ 5.5V
  • Current - Quiescent (Iq): 20mA
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Max Propagation Delay @ V, Max CL: 15ns @ 5V, 50pF
  • Base Part Number: SN74ALS2
  • Part Status: Active
  • Package / Case: 20-DIP (0.300", 7.62mm)
