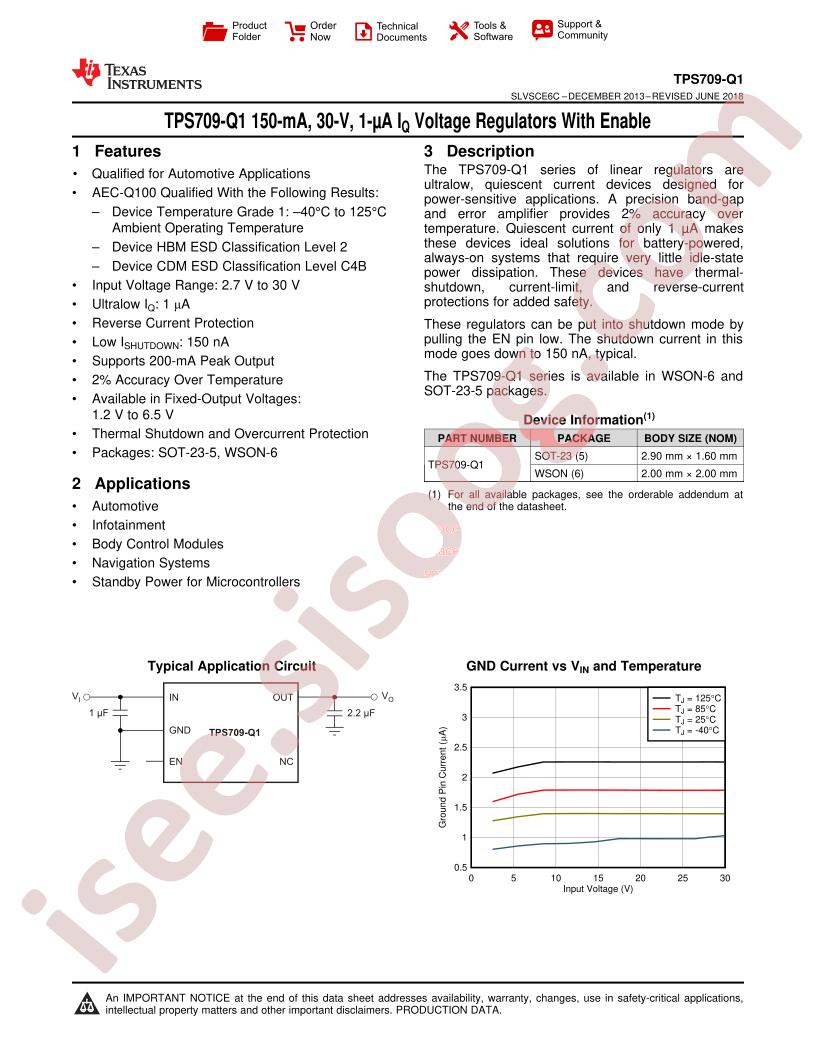

دیتاشیت TPS70912QDBVRQ1
مشخصات دیتاشیت
| نام دیتاشیت |
TPS709-Q1
|
| حجم فایل |
2059.865
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
35
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS70912QDBVRQ1
-
Output Current:
150mA
-
Output Voltage:
1.2V
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
35V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
2.05uA
-
Package:
SOT-23-5
-
Manufacturer:
Texas Instruments
-
Voltage Dropout (Max):
-
-
Current - Supply (Max):
350µA
-
Current - Output:
150mA
-
Current - Quiescent (Iq):
2.05µA
-
Voltage - Input (Max):
30V
-
Base Part Number:
TPS709
-
Package / Case:
SC-74A, SOT-753
-
Voltage - Output (Max):
-
-
Output Configuration:
Positive
-
Series:
Automotive, AEC-Q100
-
Supplier Device Package:
SOT-23-5
-
PSRR:
80dB ~ 52dB (10Hz ~ 1kHz)
-
Part Status:
Active
-
Mounting Type:
Surface Mount
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO)
-
Voltage - Output (Min/Fixed):
1.2V
-
Number of Regulators:
1
-
Packaging:
Cut Tape (CT)
-
Output Type:
Fixed
-
detail:
Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
