دیتاشیت AD7233ANZ

AD7233

مشخصات دیتاشیت

نام دیتاشیت AD7233
حجم فایل 103.811 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

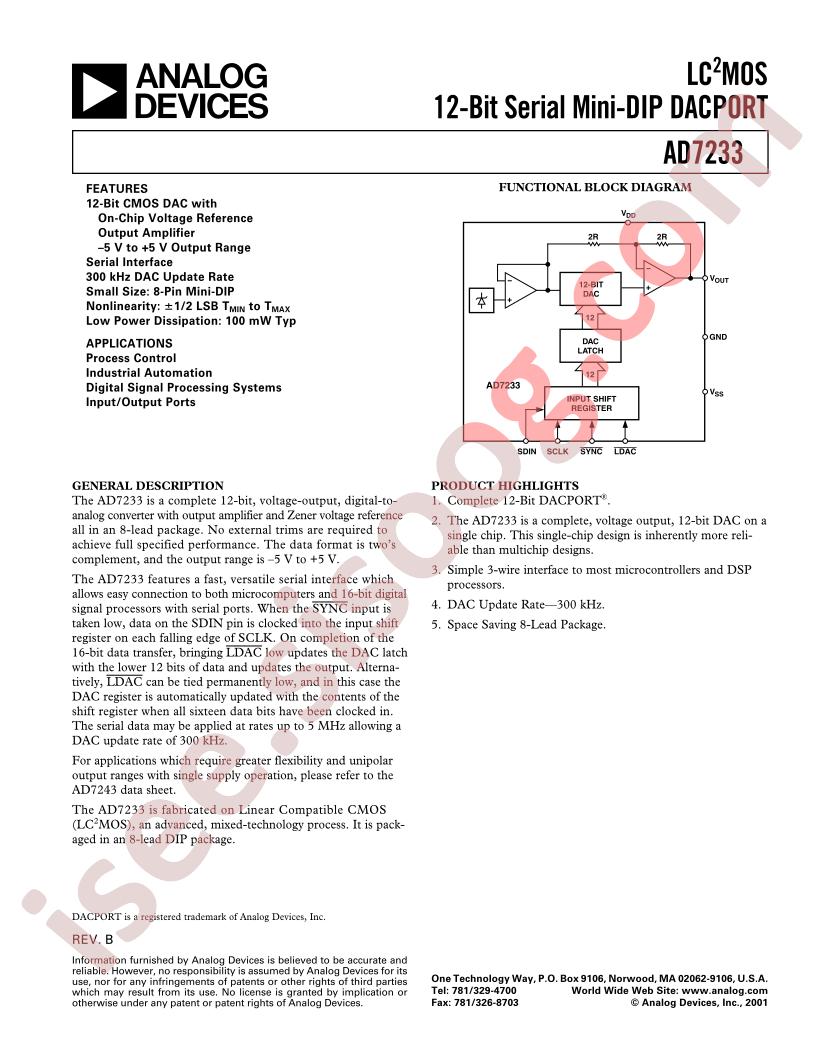

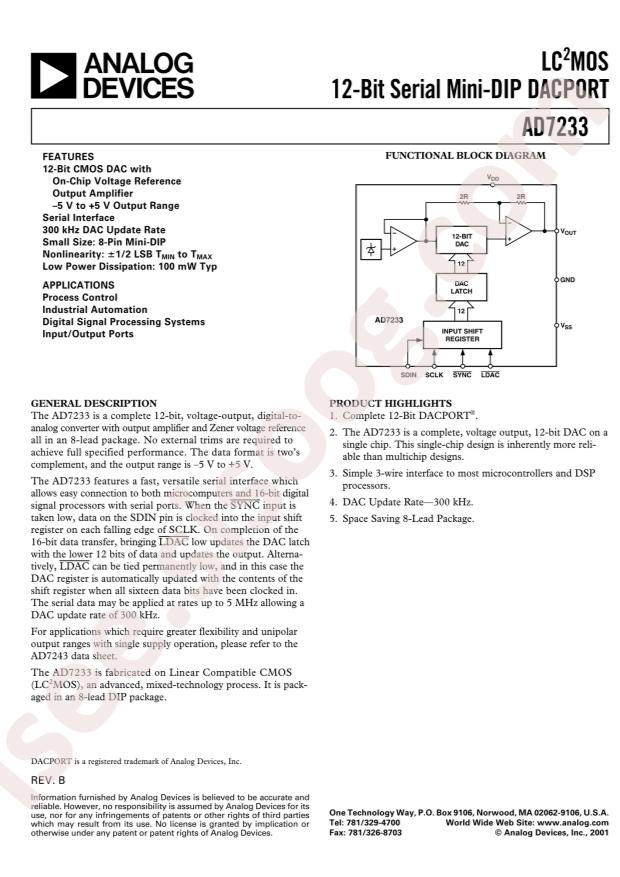

دانلود دیتاشیت AD7233

AD7233 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD7233ANZ
  • Interface: SPI
  • Resolution: 12Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 10us
  • Integral nonlinearity: ±1LSB;±0.9LSB
  • Operating Temperature: -40°C~+85°C
  • Package: PDIP-8
  • Manufacturer: Analog Devices
  • Series: DACPORT®
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Number of D/A Converters: 1
  • Differential Output: No
  • Data Interface: SPI
  • Reference Type: Internal
  • Voltage - Supply, Analog: ±10.8V ~ 16.5V
  • Voltage - Supply, Digital: -
  • INL/DNL (LSB): ±1 (Max), ±0.9 (Max)
  • Architecture: R-2R
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Package: 8-PDIP
  • Mounting Type: Through Hole
  • Base Part Number: AD7233
  • detail: 12 Bit Digital to Analog Converter 1 8-PDIP
