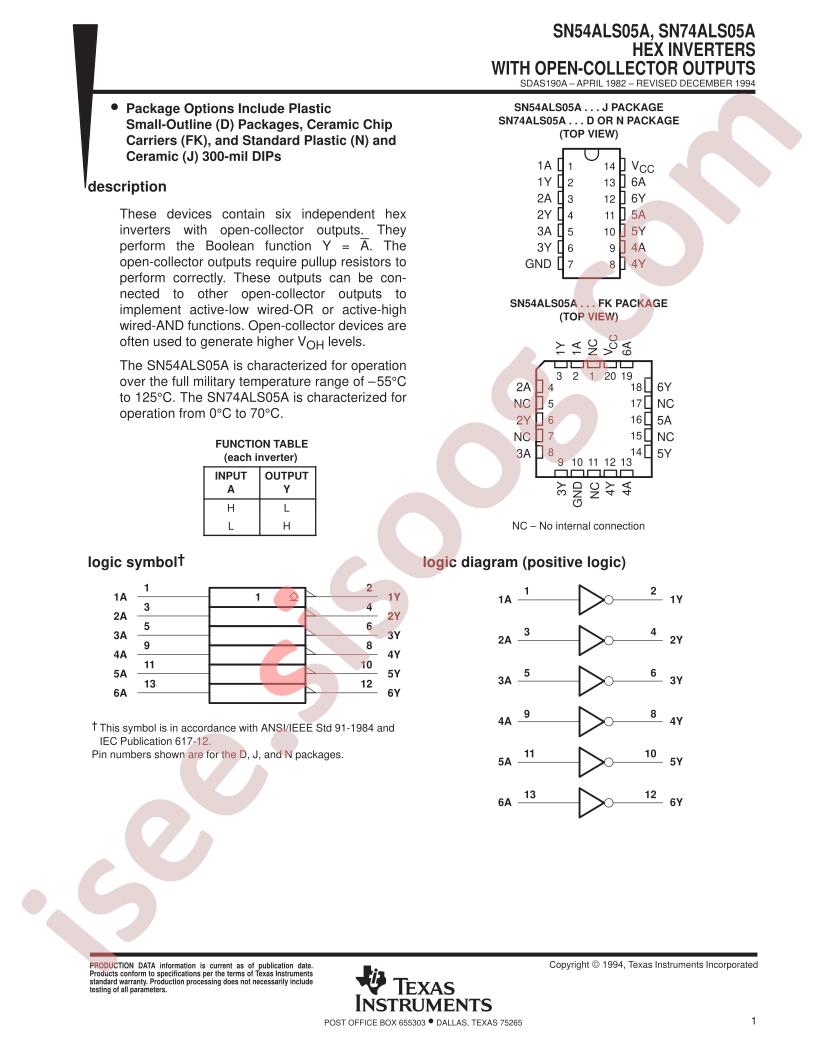

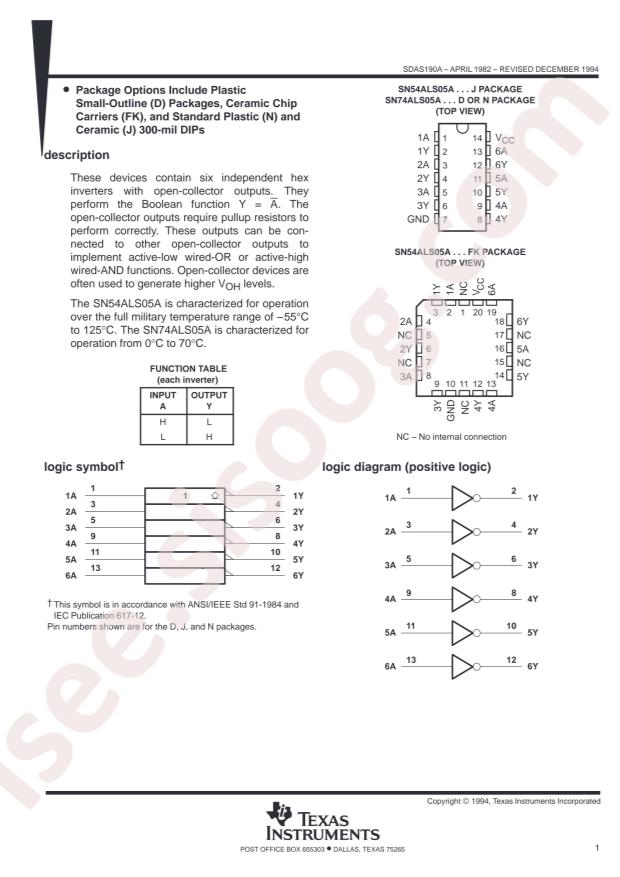

دیتاشیت SN74ALS05AN
مشخصات دیتاشیت
| نام دیتاشیت |
SN54/74ALS05A
|
| حجم فایل |
1160.499
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات
-
RoHS:
true
-
Series:
74ALS
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments SN74ALS05AN
-
Sink Current:
8mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Low level range (VIL):
0.8V
-
Max Propagation Delay:
54ns@5V,50pF
-
Operating Temperature:
0°C~+70°C
-
High level range (VIH):
2V
-
Supply Voltage(Single):
4.5V~5.5V
-
Package:
PDIP-14
-
Manufacturer:
Texas Instruments
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Logic Level - High:
2V
-
Features:
Open Collector
-
Current - Output High, Low:
-, 8mA
-
Mounting Type:
Through Hole
-
Supplier Device Package:
14-PDIP
-
Logic Type:
Inverter
-
Max Propagation Delay @ V, Max CL:
54ns @ 5V, 50pF
-
Voltage - Supply:
4.5V ~ 5.5V
-
Packaging:
Tube
-
Base Part Number:
SN74ALS0
-
Part Status:
Active
-
Logic Level - Low:
0.8V
