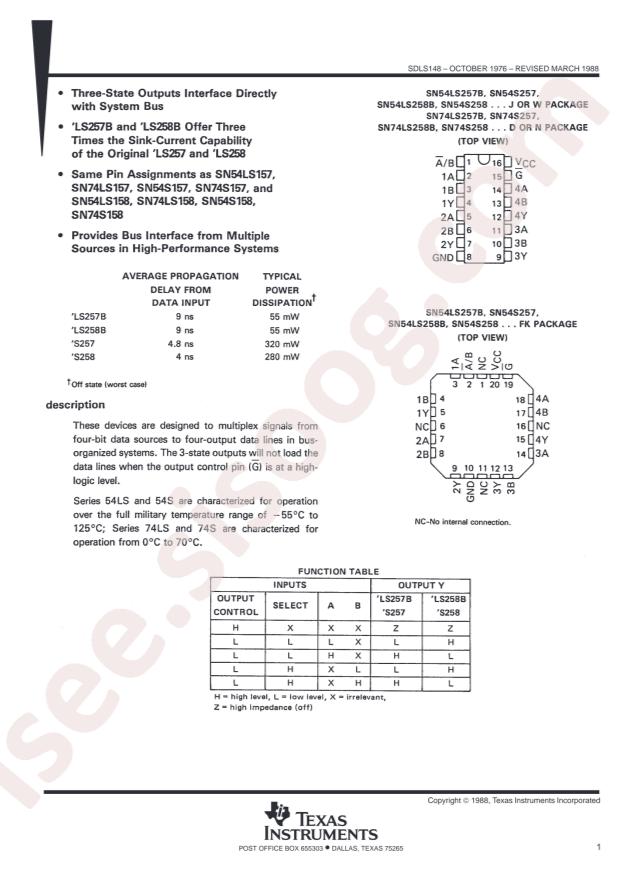

دیتاشیت SN74S257N

SN54/74(LS,S)257/58

مشخصات دیتاشیت

نام دیتاشیت SN54/74(LS,S)257/58
حجم فایل 1043.563 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت SN54/74(LS,S)257/58

SN54/74(LS,S)257/58 Datasheet

مشخصات

  • RoHS: true
  • Type: Multiplexers
  • Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
  • Datasheet: Texas Instruments SN74S257N
  • Sink Current: 20mA
  • Source Current: 6.5mA
  • Supply Voltage: 4.75V~5.25V
  • Operating temperature: 0°C~+70°C
  • Voltage Supply Source: Single supply
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Series: 74S
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-PDIP
  • Circuit: 4 x 2:1
  • Part Status: Active
  • Current - Output High, Low: 6.5mA, 20mA
  • Mounting Type: Through Hole
  • Independent Circuits: 1
  • Voltage - Supply: 4.75V ~ 5.25V
  • Packaging: Tube
  • Base Part Number: SN74S2
  • detail: Multiplexer 4 x 2:1 16-PDIP
