دیتاشیت CC2538NF23RTQR
مشخصات دیتاشیت

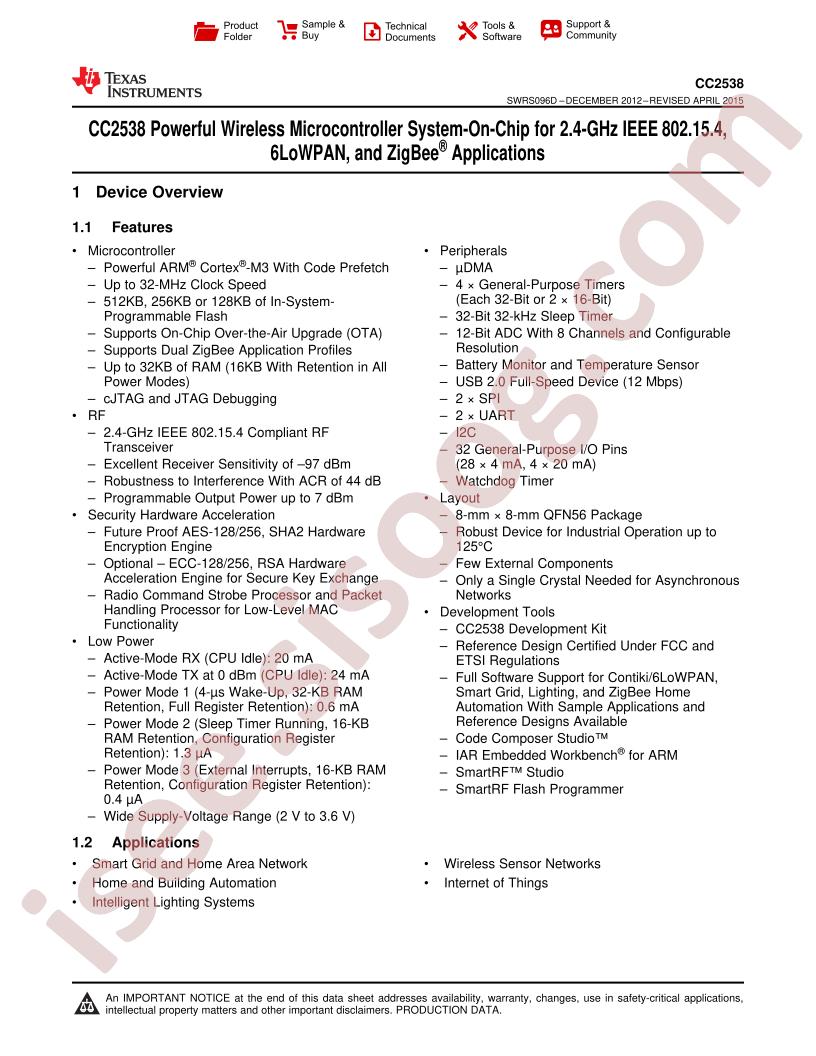

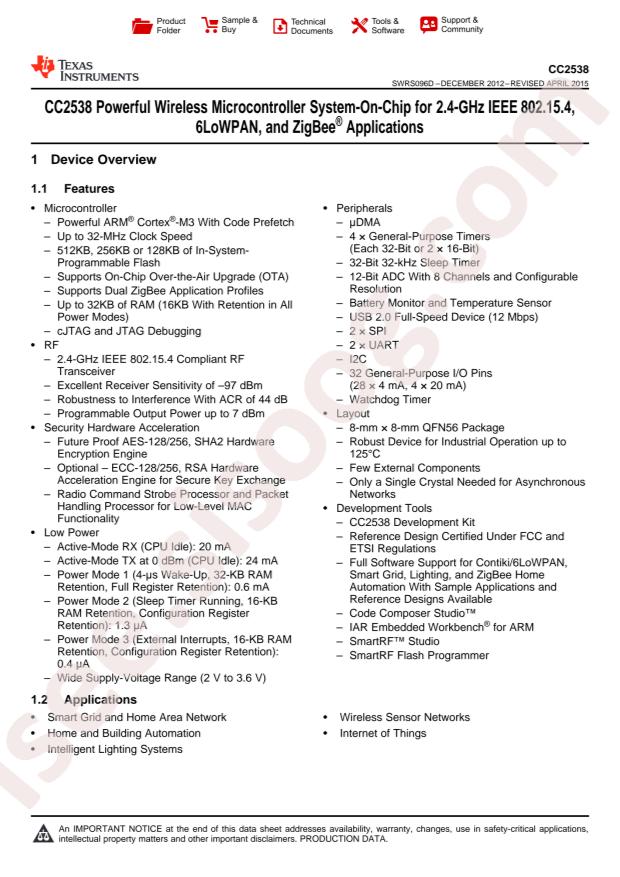

| نام دیتاشیت | CC2538 Datasheet |
|---|---|
| حجم فایل | 1497.397 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
دانلود دیتاشیت CC2538 Datasheet |
CC2538 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
- Datasheet: Texas Instruments CC2538NF23RTQR
- Package: QFN-56-EP(8x8)
- Manufacturer: Texas Instruments
- Type: TxRx + MCU
- Sensitivity: -97dBm
- Base Part Number: CC2538
- Current - Transmitting: 24mA ~ 34mA
- Frequency: 2.4GHz
- Package / Case: 56-VFQFN Exposed Pad
- Memory Size: 256kB Flash, 32kB RAM
- Modulation: -
- Voltage - Supply: 2V ~ 3.6V
- GPIO: 32
- Series: -
- Operating Temperature: -40°C ~ 125°C
- RF Family/Standard: 802.15.4
- Protocol: 6LoWPAN, Zigbee®
- Supplier Device Package: 56-QFN (8x8)
- Packaging: Cut Tape (CT)
- Part Status: Active
- Mounting Type: Surface Mount
- Serial Interfaces: I²C, JTAG, SPI, UART, USB
- Power - Output: 7dbm
- Data Rate (Max): 250kbps
- Current - Receiving: 20mA ~ 24mA
- detail: IC RF TxRx + MCU 802.15.4 6LoWPAN, Zigbee® 2.4GHz 56-VFQFN Exposed Pad
