دیتاشیت LM309H
مشخصات دیتاشیت
| نام دیتاشیت |

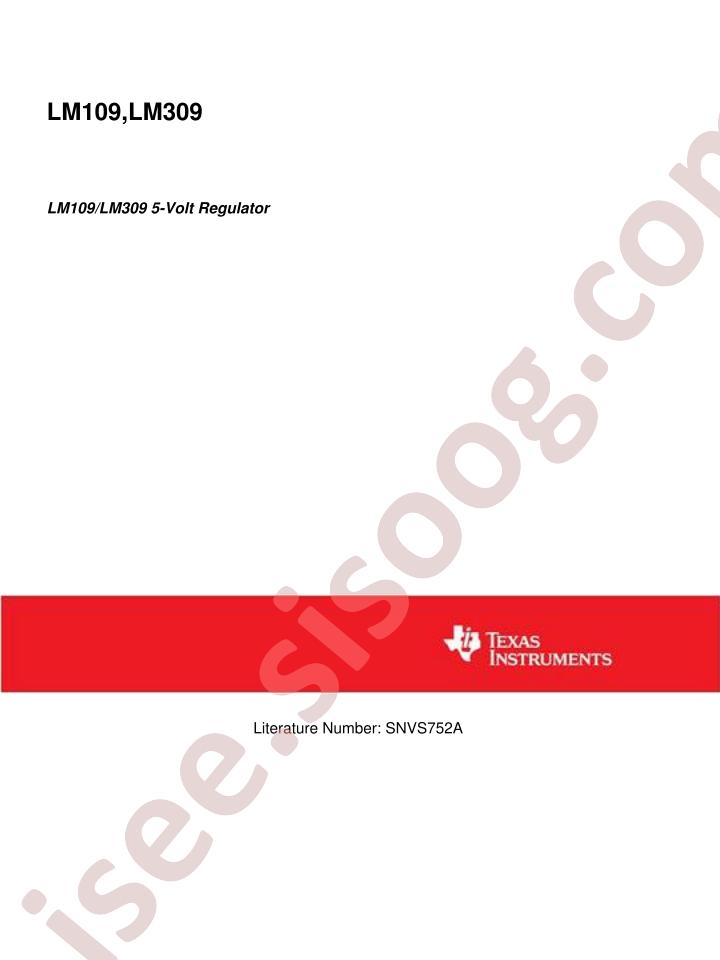

LM109, 309
|
| حجم فایل |
298.253
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Feature:
Thermal Protection
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments LM309H
-
Output Current:
1A
-
Output Voltage:
5.05V
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
25V
-
Operating Temperature:
0°C~+125°C
-
Quiescent Current (Ground Current):
5.2mA
-
Package:
TO-39
-
Manufacturer:
Texas Instruments
-
Voltage Dropout (Max):
-
-
Current - Supply (Max):
10mA
-
Current - Output:
1A
-
Current - Quiescent (Iq):
5.2mA
-
Voltage - Input (Max):
25V
-
Base Part Number:
LM309
-
Package / Case:
TO-205AD, TO-39-3 Metal Can
-
Voltage - Output (Max):
-
-
Output Configuration:
Positive
-
Series:
-
-
Supplier Device Package:
TO-39-3
-
PSRR:
-
-
Part Status:
Active
-
Mounting Type:
Through Hole
-
Control Features:
-
-
Protection Features:
Over Temperature
-
Voltage - Output (Min/Fixed):
5.05V
-
Number of Regulators:
1
-
Packaging:
Box
-
Output Type:
Fixed
