دیتاشیت AD9775BSVZ

AD9775

مشخصات دیتاشیت

نام دیتاشیت AD9775
حجم فایل 1553.766 کیلوبایت
نوع فایل pdf
تعداد صفحات 56

دانلود دیتاشیت AD9775

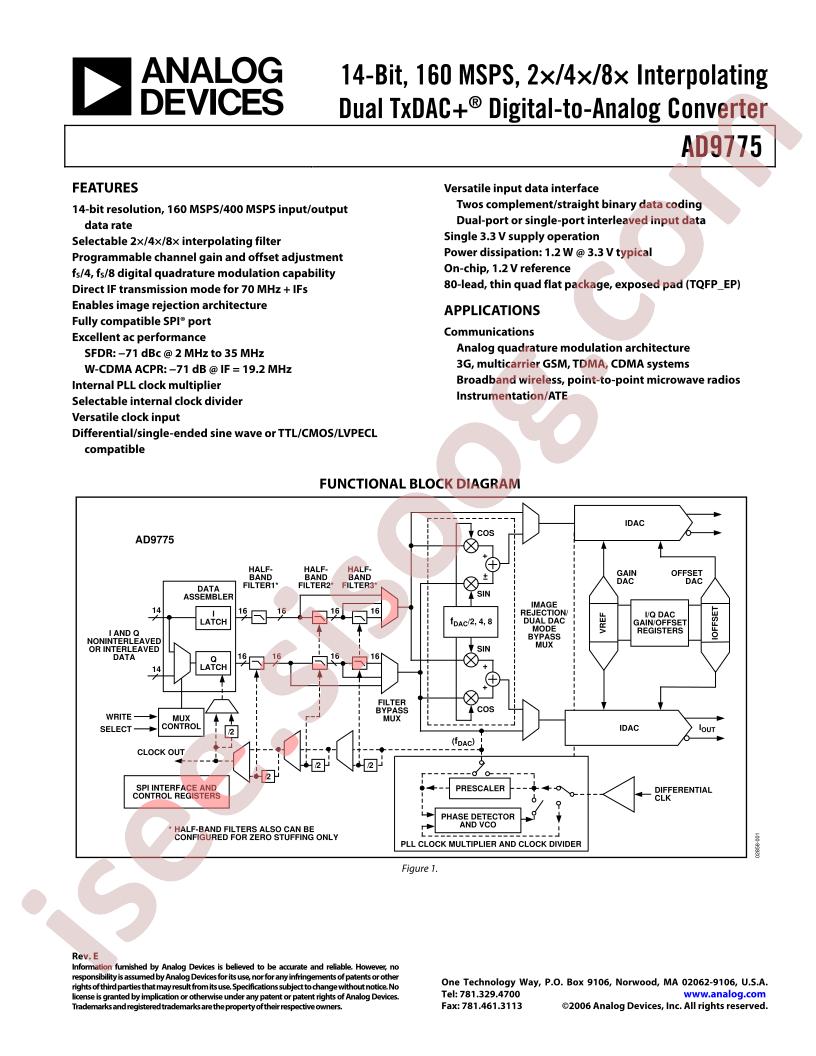

AD9775 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: TxDAC+®
  • Packaging: Tray
  • Part Status: Active
  • Number of Bits: 14
  • Number of D/A Converters: 2
  • Settling Time: 11ns (Typ)
  • Output Type: Current - Unbuffered
  • Differential Output: Yes
  • Data Interface: Parallel
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 3.1V ~ 3.5V
  • Voltage - Supply, Digital: 3.1V ~ 3.5V
  • INL/DNL (LSB): ±1.5, ±1
  • Architecture: Oversampling Interpolating DAC
  • Operating Temperature: -40°C ~ 85°C

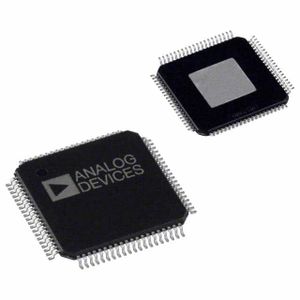

  • Package / Case: 80-TQFP Exposed Pad
  • Supplier Device Package: 80-TQFP-EP (12x12)
  • Mounting Type: Surface Mount
  • Base Part Number: AD9775
  • detail: 14 Bit Digital to Analog Converter 2 80-TQFP-EP (12x12)
