دیتاشیت AD9760ARU

AD9760

مشخصات دیتاشیت

نام دیتاشیت AD9760
حجم فایل 417.878 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

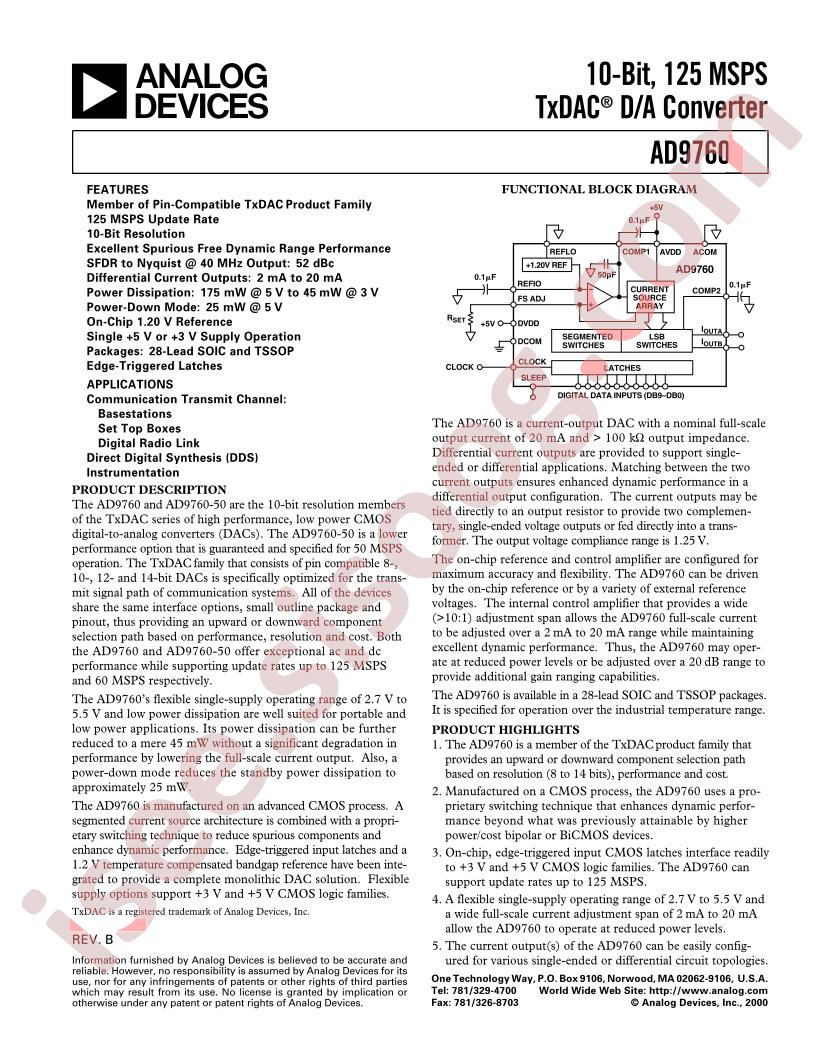

دانلود دیتاشیت AD9760

AD9760 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD9760ARU
  • Interface: Parallel
  • Resolution: 10Bit
  • Output Type: Current-非缓冲
  • Settling Time: 35ns
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±0.5LSB;±0.25LSB
  • Operating Temperature: -40°C~+85°C
  • Package: TSSOP-28
  • Manufacturer: Analog Devices
  • Series: TxDAC®
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 10
  • Number of D/A Converters: 1
  • Differential Output: Yes
  • Data Interface: Parallel
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • INL/DNL (LSB): ±0.5, ±0.25
  • Architecture: Current Source
  • Package / Case: 28-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 28-TSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD9760
