دیتاشیت ADG428BP

ADG428,429

مشخصات دیتاشیت

نام دیتاشیت ADG428,429
حجم فایل 164.237 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت ADG428,429

ADG428,429 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Circuit: -
  • Multiplexer/Demultiplexer Circuit: 8:1
  • Number of Circuits: 1
  • On-State Resistance (Max): 100Ohm
  • Channel-to-Channel Matching (ΔRon): 10Ohm
  • Voltage - Supply, Single (V+): 12V
  • Voltage - Supply, Dual (V±): ±15V
  • Switch Time (Ton, Toff) (Max): 150ns, 150ns
  • -3db Bandwidth: -
  • Charge Injection: 4pC
  • Channel Capacitance (CS(off), CD(off)): 11pF, 40pF
  • Current - Leakage (IS(off)) (Max): 500pA
  • Crosstalk: -85dB @ 1MHz
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount

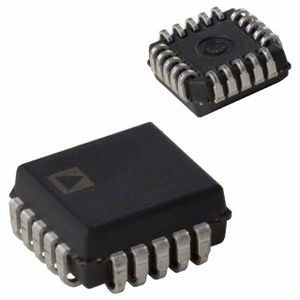

  • Package / Case: 20-LCC (J-Lead)
  • Supplier Device Package: 20-PLCC (9x9)
  • Base Part Number: ADG428
  • detail: 1 Circuit IC Switch 8:1 100Ohm 20-PLCC (9x9)
