دیتاشیت SN74BCT29821NT

مشخصات دیتاشیت

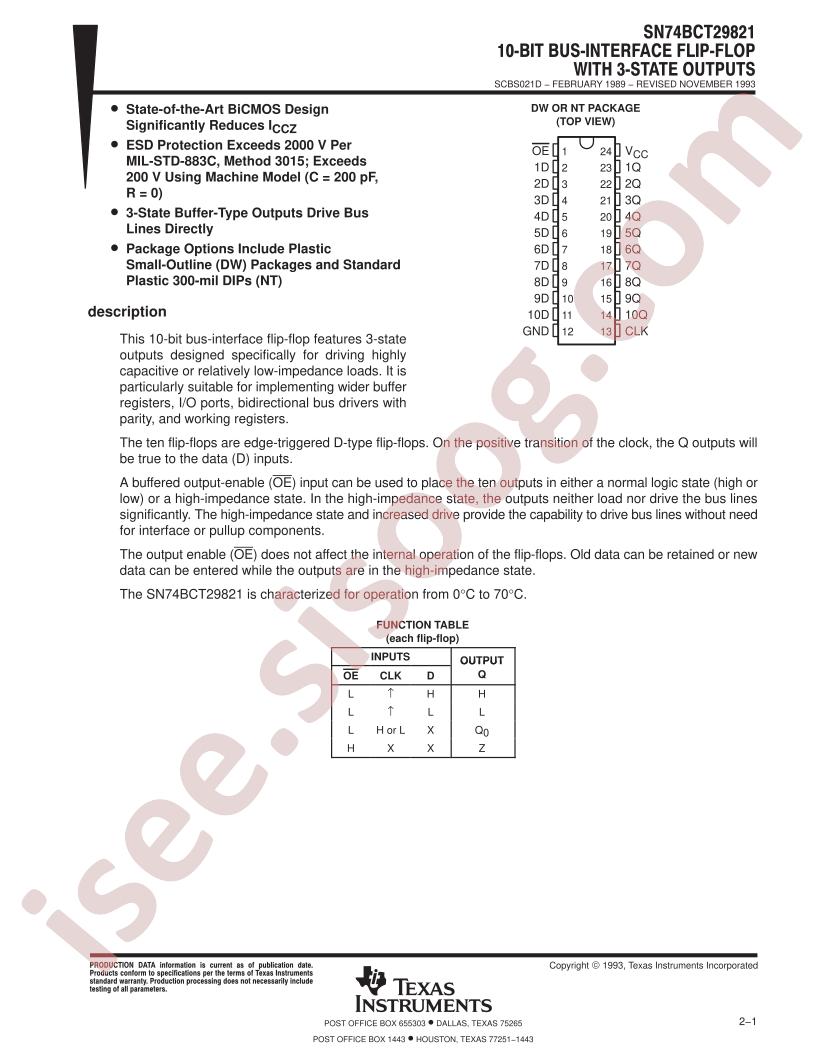

دانلود دیتاشیت SN74BCT29821	SN74BCT29821 Datasheet

Series: 74BCT
Type: D-Type
Package / Case: 24-DIP (0.300", 7.62mm)
Current - Output High, Low: 24mA, 48mA
Number of Elements: 1
Function: Standard
Clock Frequency: 125MHz
Current - Quiescent (Iq): 10mA
Part Status: Obsolete
Number of Bits per Element: 10
Mounting Type: Through Hole
Operating Temperature: 0°C ~ 70°C (TA)
Max Propagation Delay @ V, Max CL: 10ns @ 5V, 50pF
Manufacturer: Texas Instruments
Input Capacitance: 5.5pF
Voltage - Supply: 4.5V ~ 5.5V
Packaging: Tube
Base Part Number: SN74BCT
Supplier Device Package: 24-PDIP
Output Type: Tri-State, Non-Inverted
Trigger Type: Positive Edge
detail: Flip Flop 1 Element D-Type 10 Bit Positive Edge 24-DIP (0.300", 7.62mm)
