دیتاشیت ADG619BRM
مشخصات دیتاشیت

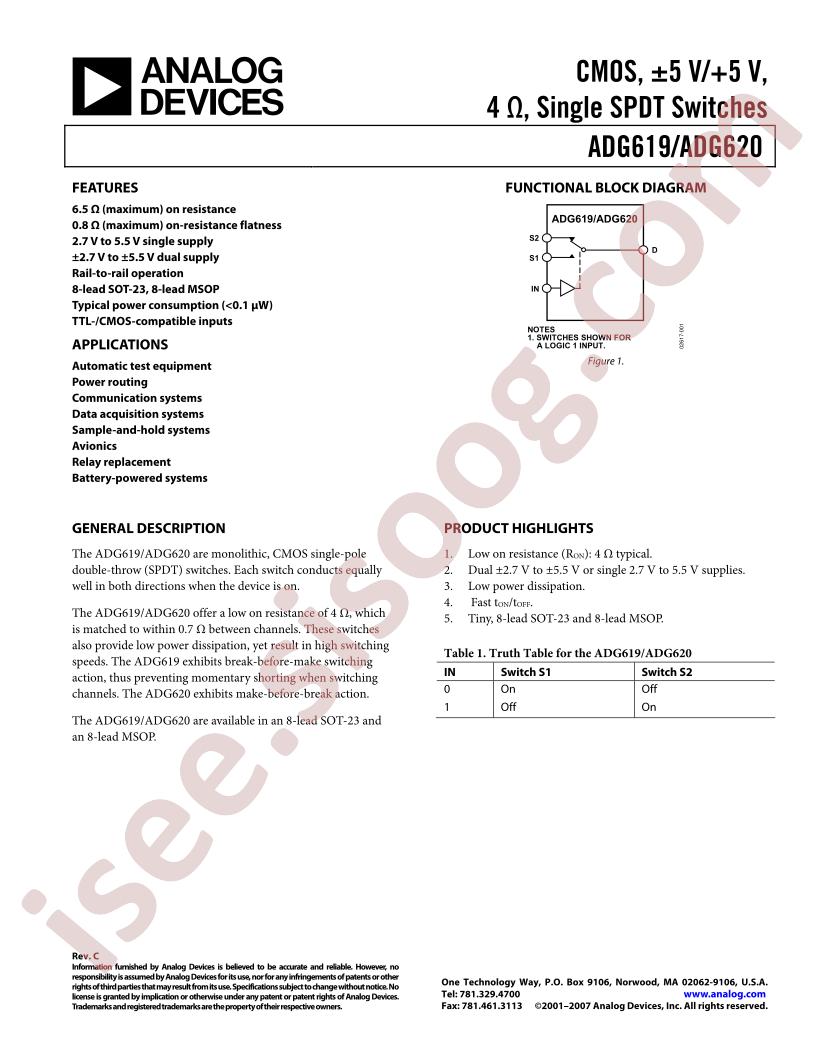

| نام دیتاشیت |
ADG619,620
|
| حجم فایل |
366.883
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
Manufacturer:
Analog Devices Inc.
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Switch Circuit:
SPDT
-
Multiplexer/Demultiplexer Circuit:
2:1
-
Number of Circuits:
1
-
On-State Resistance (Max):
6.5Ohm
-
Channel-to-Channel Matching (ΔRon):
700mOhm
-
Voltage - Supply, Single (V+):
2.7V ~ 5.5V
-
Voltage - Supply, Dual (V±):
±2.7V ~ 5.5V
-
Switch Time (Ton, Toff) (Max):
120ns, 75ns
-
-3db Bandwidth:
190MHz
-
Charge Injection:
110pC
-
Channel Capacitance (CS(off), CD(off)):
25pF
-
Current - Leakage (IS(off)) (Max):
250pA
-
Crosstalk:
-67dB @ 1MHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Supplier Device Package:
8-MSOP
-
Base Part Number:
ADG619
