دیتاشیت UC3525BDW
مشخصات دیتاشیت
| نام دیتاشیت | UC1525B/27B, 2525B/27B, 3525B/27B |
|---|---|
| حجم فایل | 2226.262 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت UC1525B/27B, 2525B/27B, 3525B/27B |

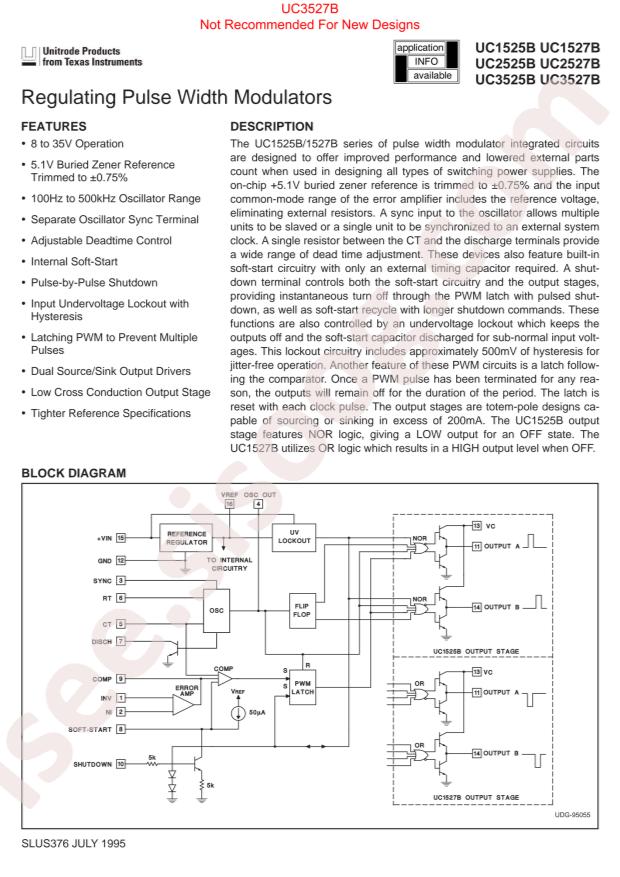

UC1525B/27B, 2525B/27B, 3525B/27B Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Step-down type;Buck-boost type
- Topology: Step-down;Boost;Flyback;Full-Bridge;Half-Bridge;Push-pull
- Datasheet: Texas Instruments UC3525BDW
- Input Voltage: 8V~35V
- Duty Cycle (Max): 49%
- Number of Outputs: 2
- Switching Frequency: 400kHz
- Operating Temperature: 0°C~+70°C@(TA)
- Synchronous Rectification: Yes
- Package: SOP-16-300mil
- Manufacturer: Texas Instruments
- Packaging: Tube
- Series: -
- Supplier Device Package: 16-SOIC
- Serial Interfaces: -
- Control Features: Dead Time Control, Frequency Control, Ramp, Soft Start
- Part Status: Active
- Base Part Number: UC352
- Synchronous Rectifier: Yes
- Clock Sync: Yes
- Output Configuration: Positive
- Mounting Type: Surface Mount
- Output Phases: 1
- Output Type: Transistor Driver
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Voltage - Supply (Vcc/Vdd): 8V ~ 35V
- Frequency - Switching: 100Hz ~ 400kHz
- detail: Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-SOIC
