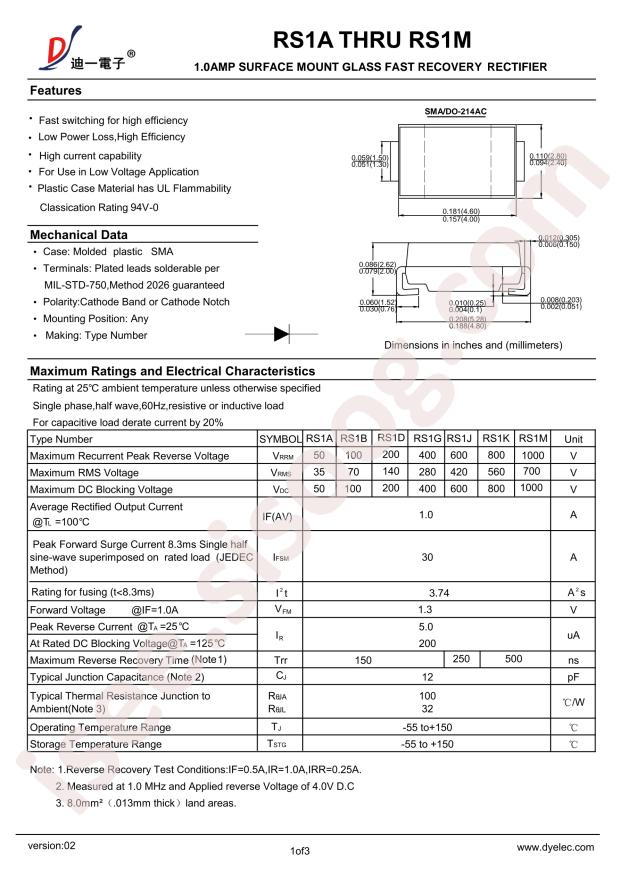

RS1M دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | RS1M |
|---|---|
| حجم فایل | 101.854 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 3 |
دانلود دیتاشیت RS1M |
دانلود دیتاشیت |
|---|
سایر مستندات
RS1A-M 5 pages
RS1G 3 pages
RS1G 4 pages
RS1G 4 pages
RS1G 2 pages
RS1G 3 pages
RS1B 5 pages
RS1D 3 pages
RS1D 2 pages
RS1M 6 pages
RS1M 2 pages
RS1M 2 pages
RS1M 5 pages
RS1M 4 pages
RS1M 2 pages
RS1M 3 pages
RS1M 4 pages
RS1M 2 pages
RS1M 2 pages
RS1M 2 pages
RS1M 2 pages
RS1M 2 pages
RS1M 3 pages
RS1M 3 pages
RS1M 2 pages
RS1M 3 pages
RS1M 3 pages
RS1M 3 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: onsemi RS1M
- Reverse Voltage (Vr): 1000V
- Operating Temperature: -55°C~+150°C
- Forward Voltage (Vf@If): 1.3V@1A
- Reverse Leakage Current: 5uA@1000V
- Reverse Recovery Time (trr): 500ns
- Package: SMA(DO-214AC)
- Manufacturer: onsemi
- Diode Configuration: Single
- Average Rectified Current (Io): 1A
- Power Dissipation: -
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1000V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 1.3V @ 1A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 5µA @ 1000V
- Capacitance @ Vr, F: 10pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA (DO-214AC)
- Operating Temperature - Junction: -55°C ~ 150°C
- Base Part Number: RS1
