دیتاشیت TLC7524CN

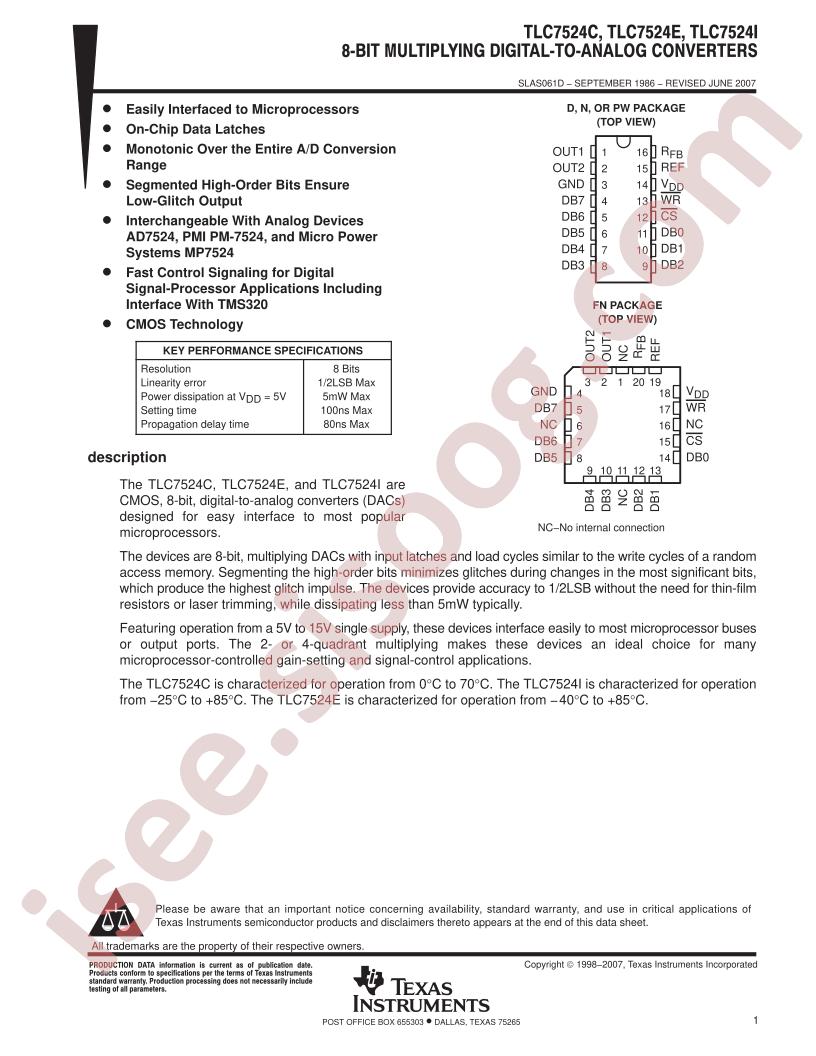

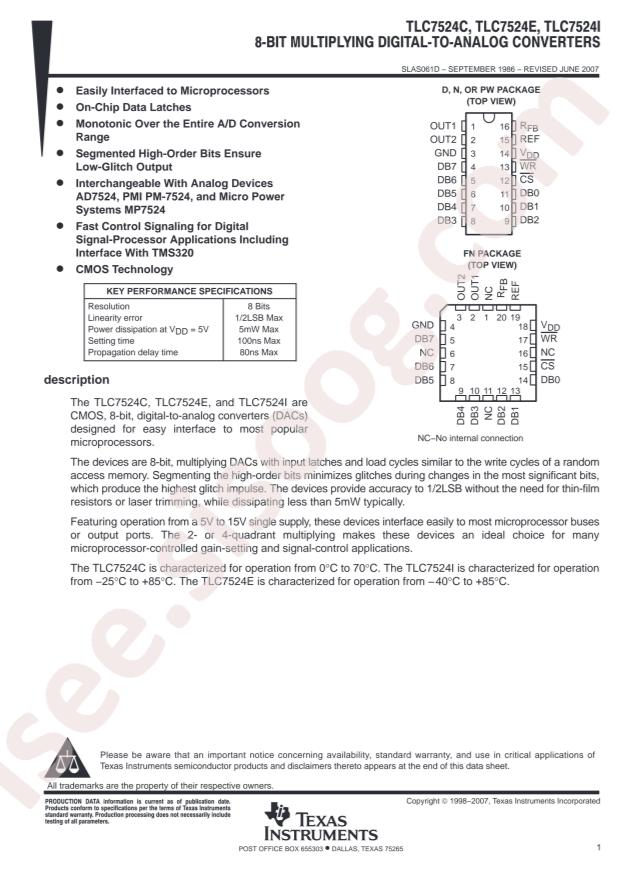

TLC7524C ,E, I Datasheet

مشخصات دیتاشیت

نام دیتاشیت TLC7524C ,E, I Datasheet
حجم فایل 1455.825 کیلوبایت
نوع فایل pdf
تعداد صفحات 27

دانلود دیتاشیت TLC7524C ,E, I Datasheet

TLC7524C ,E, I Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments TLC7524CN
  • Interface: Parallel
  • Resolution: 8Bit
  • Output Type: Current-非缓冲
  • Settling Time: 100ns
  • Supply Voltage: 5V;14.5V~15.5V
  • Integral nonlinearity: ±0.5LSB;±2.5LSB
  • Operating Temperature: 0°C~+70°C
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Architecture: R-2R
  • INL/DNL (LSB): ±0.5 (Max), ±2.5 (Max)
  • Number of Bits: 8
  • Part Status: Active
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Voltage - Supply, Digital: 5V, 14.5V ~ 15.5V
  • Packaging: Tube
  • Data Interface: Parallel
  • Reference Type: External
  • Series: -
  • Differential Output: Yes
  • Supplier Device Package: 16-PDIP
  • Number of D/A Converters: 1
  • Voltage - Supply, Analog: 5V, 14.5V ~ 15.5V
  • Base Part Number: TLC752
  • detail: 8 Bit Digital to Analog Converter 1 16-PDIP
