دیتاشیت FQA38N30

FQA38N30

مشخصات دیتاشیت

نام دیتاشیت FQA38N30
حجم فایل 751.464 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت FQA38N30

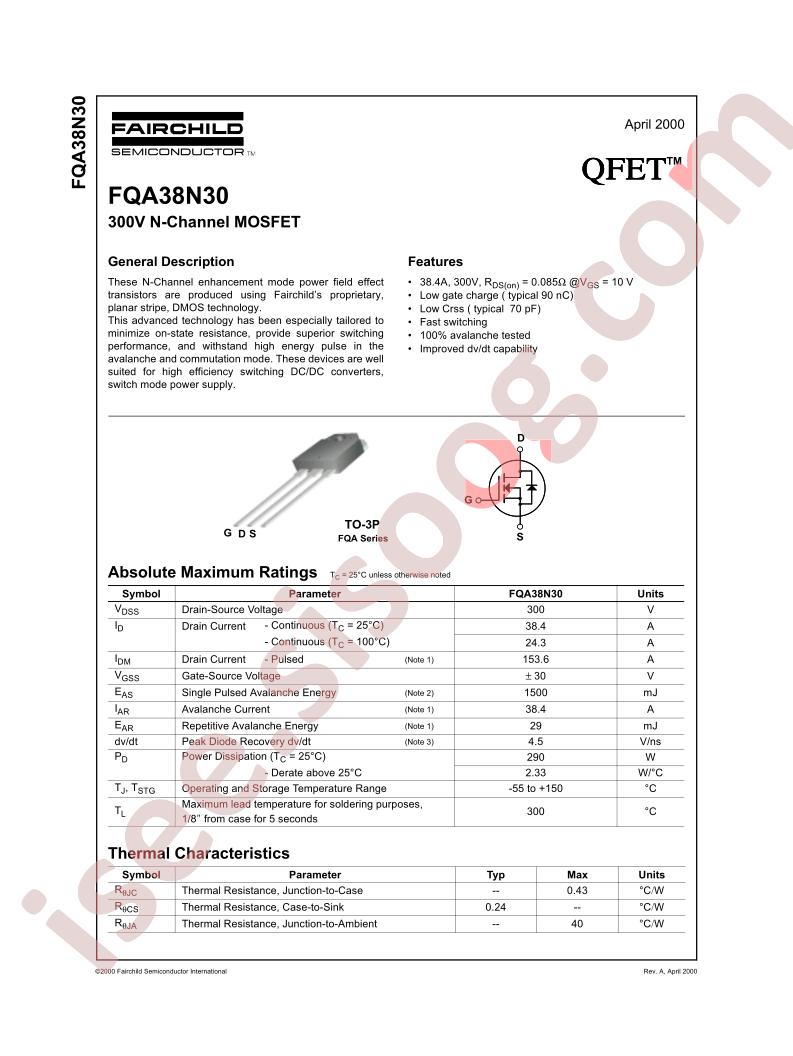

FQA38N30 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: QFET®
  • Packaging: Tube
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 300V
  • Current - Continuous Drain (Id) @ 25°C: 38.4A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 85mOhm @ 19.2A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 120nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 4400pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 290W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-3P
  • Package / Case: TO-3P-3, SC-65-3
  • Base Part Number: FQA3
  • detail: N-Channel 300V 38.4A (Tc) 290W (Tc) Through Hole TO-3P
