دیتاشیت IXDD504PI
مشخصات دیتاشیت
| نام دیتاشیت | IXDD504, IXDE504 |
|---|---|
| حجم فایل | 411.05 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 13 |
دانلود دیتاشیت IXDD504, IXDE504 |

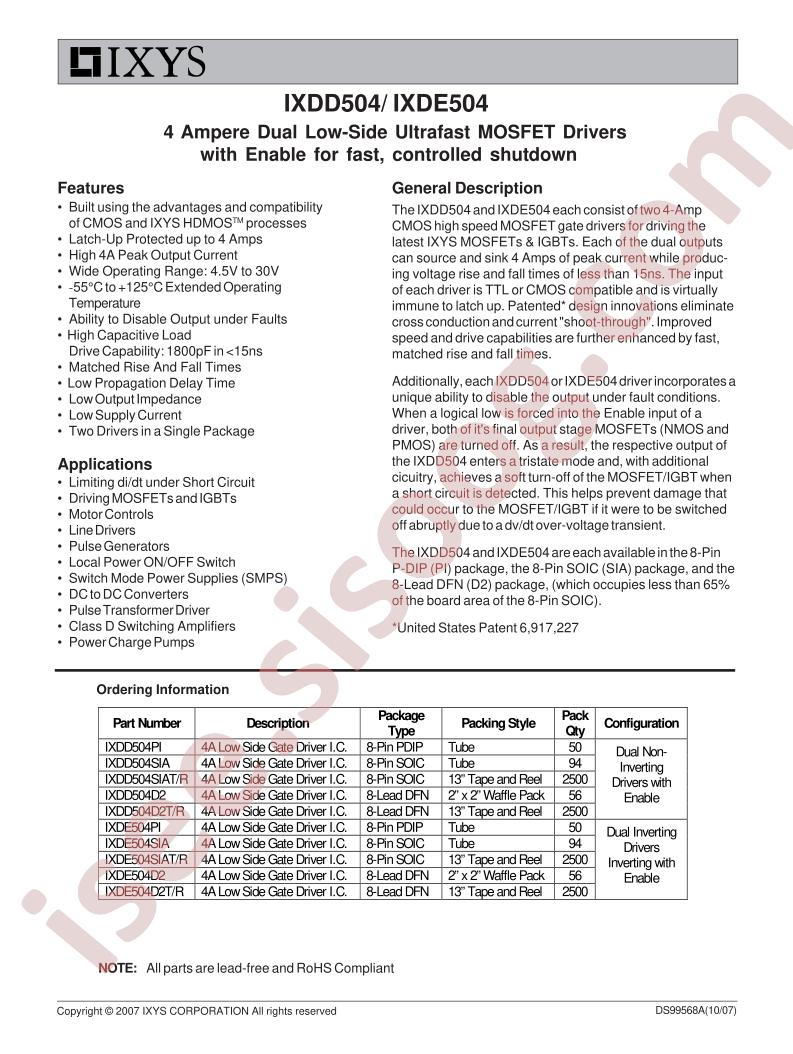

IXDD504, IXDE504 Datasheet |
|---|
مشخصات
- Manufacturer: IXYS
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Driven Configuration: Low-Side
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: IGBT, N-Channel, P-Channel MOSFET
- Voltage - Supply: 4.5V ~ 30V
- Logic Voltage - VIL, VIH: 0.8V, 3V
- Current - Peak Output (Source, Sink): 4A, 4A
- Input Type: Non-Inverting
- Rise / Fall Time (Typ): 9ns, 8ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-PDIP
- Base Part Number: IXD*504
- detail: Low-Side Gate Driver IC Non-Inverting 8-PDIP
