دیتاشیت STGP10NC60HD

STGx10NC60HD

مشخصات دیتاشیت

نام دیتاشیت STGx10NC60HD
حجم فایل 785.093 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت STGx10NC60HD

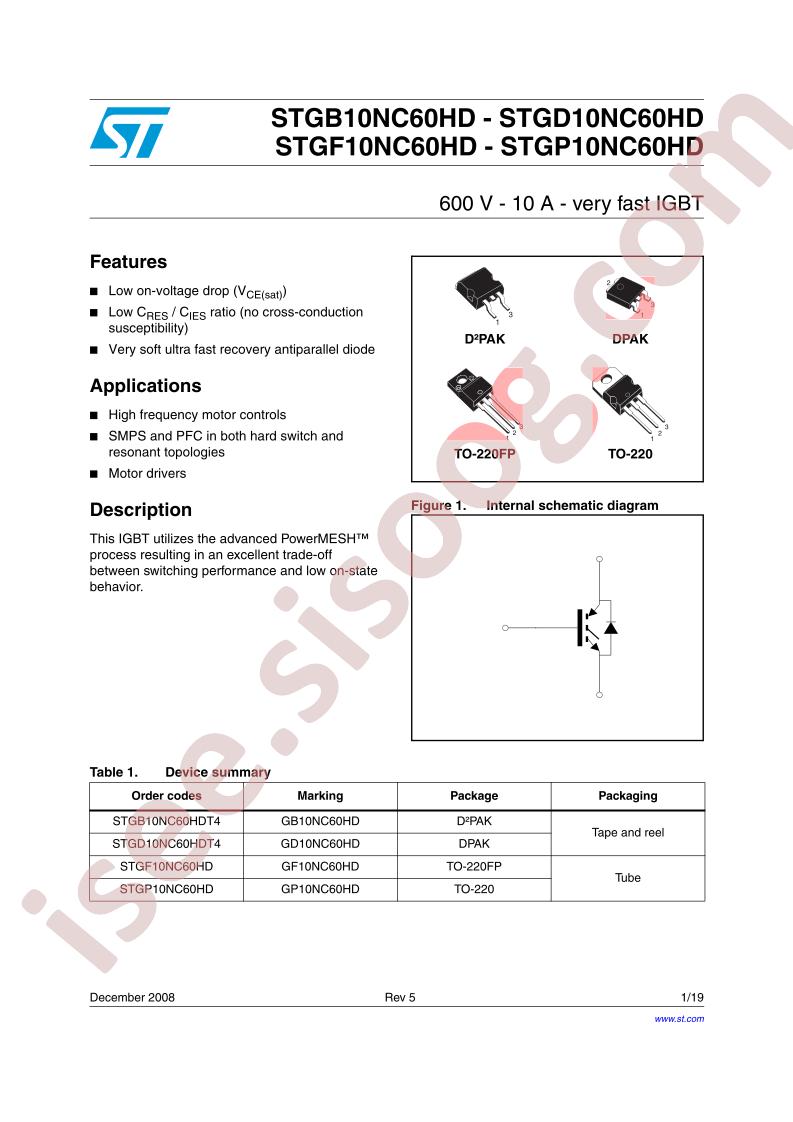

STGx10NC60HD Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: PowerMESH™
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: -
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 20A
  • Current - Collector Pulsed (Icm): 30A
  • Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 5A
  • Power - Max: 65W
  • Switching Energy: 31.8µJ (on), 95µJ (off)
  • Input Type: Standard
  • Gate Charge: 19.2nC
  • Td (on/off) @ 25°C: 14.2ns/72ns
  • Test Condition: 390V, 5A, 10Ohm, 15V
  • Reverse Recovery Time (trr): 22ns
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: STGP10
  • detail: IGBT 600V 20A 65W Through Hole TO-220AB
