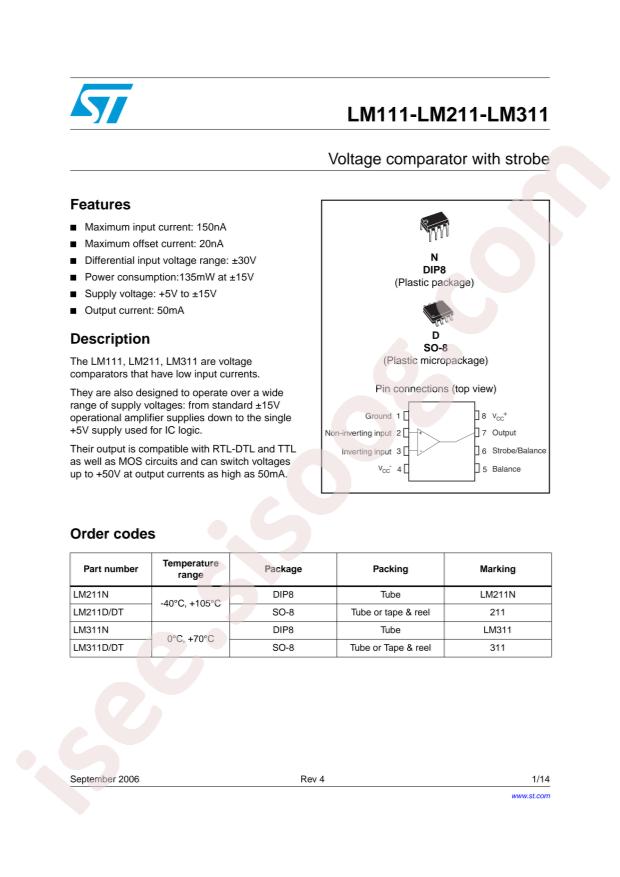

دیتاشیت LM311D
مشخصات دیتاشیت
| نام دیتاشیت |
LM111,211,311
|
| حجم فایل |
237.907
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Category:
Operational Amplifier/Comparator/Comparators
-
Datasheet:
Texas Instruments LM311D
-
Output Type:
-
-
Supply Voltage:
3.5V~30V;1.75V~15V
-
Number of Elements:
-
-
Operating Temperature:
0°C~+70°C
-
Input Bias Current (Ib):
0.25uA
-
Input Offset Voltage (Vos):
7.5mV
-
Input Hysteresis Voltage (Vhys):
-
-
Common Mode Rejection Ratio (CMRR):
-
-
Package:
SOIC-8
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Type:
General Purpose
-
Voltage - Supply, Single/Dual (±):
5V ~ 30V, ±2.5V ~ 15V
-
Voltage - Input Offset (Max):
7.5mV @ ±15V
-
Current - Input Bias (Max):
0.25µA @ ±15V
-
Current - Output (Typ):
50mA
-
Current - Quiescent (Max):
7.5mA
-
CMRR, PSRR (Typ):
-
-
Propagation Delay (Max):
-
-
Hysteresis:
-
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-SO
-
Base Part Number:
LM311
