دیتاشیت UCC3804N

مشخصات دیتاشیت

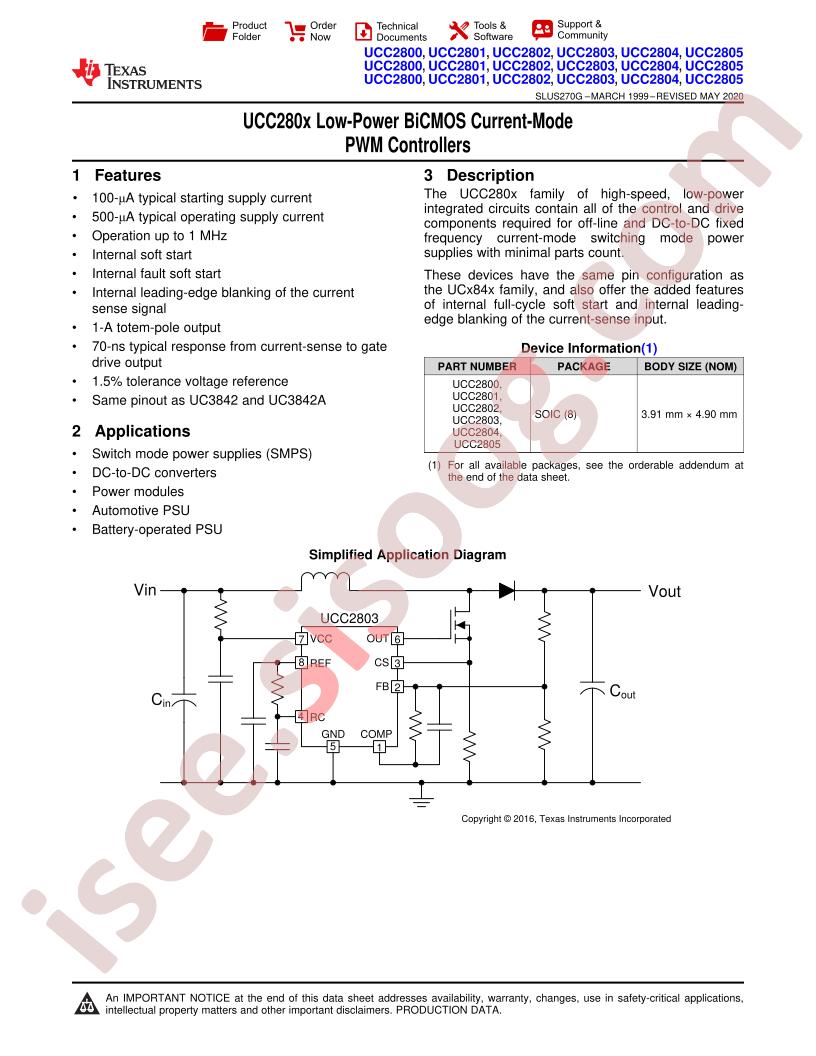

دانلود دیتاشیت UCC180x, 280x, 380x Datasheet	UCC180x, 280x, 380x Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Boost;Step-down;Flyback;Forward
Datasheet: Texas Instruments UCC3804N
Duty Cycle: 49%
Supply Voltage: 8.3V~12V
Switching Frequency: 1MHz
Operating Temperature: -40°C~+85°C@(TA)
Package: PDIP-8
Manufacturer: Texas Instruments
Output Isolation: -
Frequency - Switching: Up to 1MHz
Part Status: Active
Package / Case: 8-DIP (0.300", 7.62mm)
Packaging: Tube
Internal Switch(s): No
Fault Protection: Current Limiting
Voltage - Breakdown: -
Series: -
Control Features: Frequency Control
Supplier Device Package: 8-PDIP
Mounting Type: Through Hole
Base Part Number: UCC380
Voltage - Supply (Vcc/Vdd): 8.3V ~ 12V
Voltage - Start Up: 12.5V
detail: Converter Offline Boost, Buck, Flyback, Forward Topology Up to 1MHz 8-PDIP
