دیتاشیت CD4076BE

CD4076B

مشخصات دیتاشیت

نام دیتاشیت CD4076B
حجم فایل 666.691 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت CD4076B

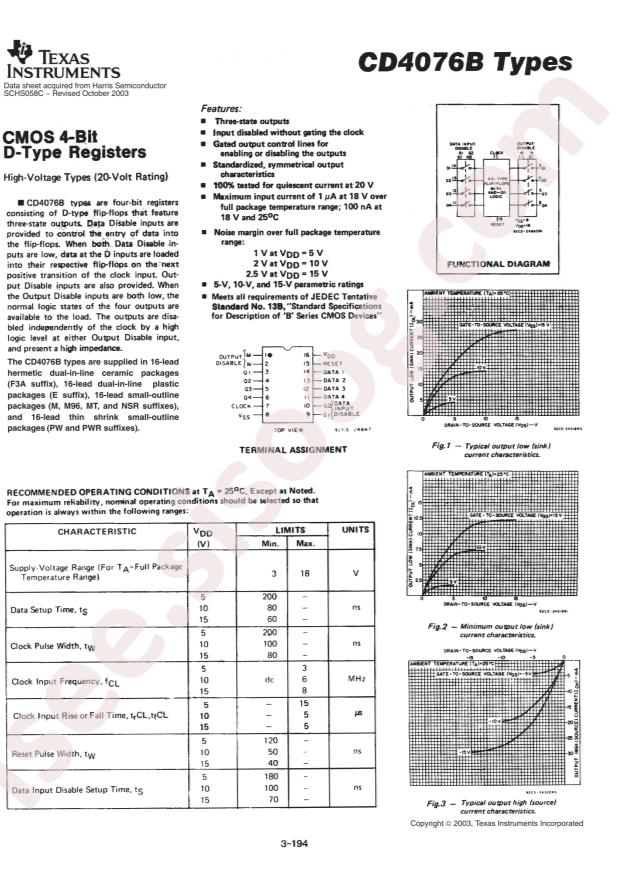

CD4076B Datasheet

مشخصات

  • RoHS: true
  • Type: D-Type
  • Series: 4000B
  • Category: Logic ICs/Flip Flops
  • Function: Reset
  • Datasheet: Texas Instruments CD4076BE
  • Output Type: Tri-State;Non-Inverted
  • Sink Current: 6.8mA
  • Trigger Type: 上升沿
  • Source Current: 6.8mA
  • Supply Voltage: 3V~18V
  • Clock Frequency: 16MHz
  • Input Capacitance: 5pF
  • Number of Elements: 1
  • Operating Temperature: -55°C~+125°C
  • Quiescent Current (Iq): 20uA
  • Maximum Propagation Delay: 180ns@15V,50pF
  • Number of Bits per Element: 4
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Supplier Device Package: 16-PDIP
  • Current - Output High, Low: 6.8mA, 6.8mA
  • Voltage - Supply: 3V ~ 18V
  • Current - Quiescent (Iq): 20µA
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Max Propagation Delay @ V, Max CL: 180ns @ 15V, 50pF
  • Base Part Number: CD4076
  • Part Status: Active
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • detail: Flip Flop 1 Element D-Type 4 Bit Positive Edge 16-DIP (0.300", 7.62mm)
