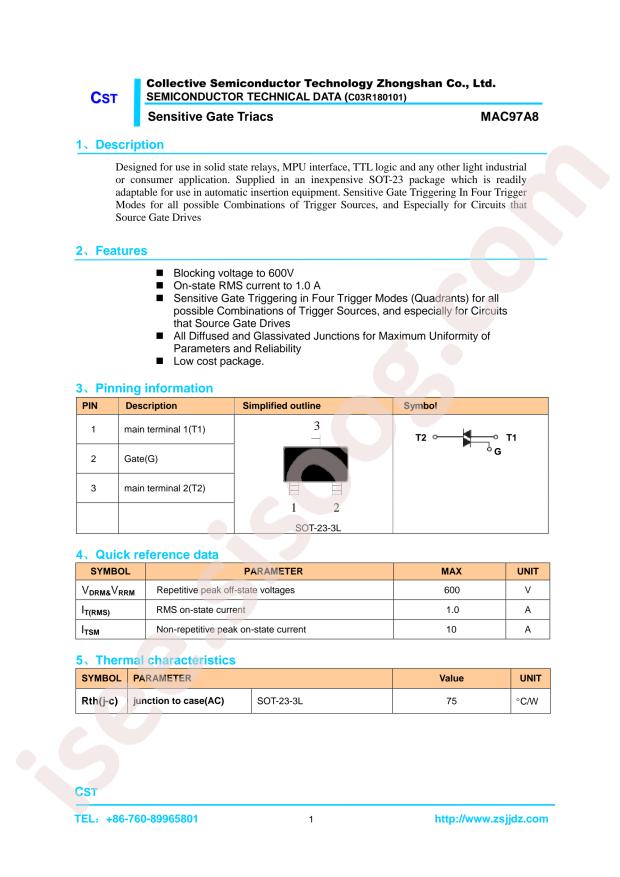

دیتاشیت MAC97A8
مشخصات دیتاشیت
| نام دیتاشیت |
MAC97 Series
|
| حجم فایل |
130.203
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/TRIACs
-
Datasheet:
Collective Semiconductor Technology MAC97A8
-
Package:
SOT-23-3L
-
Manufacturer:
Collective Semiconductor Technology
-
SCR Type:
Two-way thyristor
-
Holding Current (Ih):
10mA
-
Operating Temperature:
-40°C~+125°C
-
Gate Trigger Voltage (Vgt):
1.2V
-
RMS On-State Current(It (rms)):
1A
-
Peak Forward On?State Voltage (Vtm):
1.55V
-
Average Gate Power Dissipation (PG(AV)):
0.3W
-
Peak Repetitive Off?State Voltage (Vdrm):
800V
-
Peak non-repetitive surge current (Itsm@f):
12A
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Obsolete
-
Triac Type:
Logic - Sensitive Gate
-
Voltage - Off State:
600V
-
Current - On State (It (RMS)) (Max):
600mA
-
Voltage - Gate Trigger (Vgt) (Max):
2V
-
Current - Non Rep. Surge 50, 60Hz (Itsm):
8A @ 60Hz
-
Current - Gate Trigger (Igt) (Max):
5mA
-
Current - Hold (Ih) (Max):
10mA
-
Configuration:
Single
-
Mounting Type:
Through Hole
-
Package / Case:
TO-226-3, TO-92-3 (TO-226AA)
-
Supplier Device Package:
TO-92-3
-
Base Part Number:
MAC97
