دیتاشیت STP90NF03L
مشخصات دیتاشیت
| نام دیتاشیت | ST(B,P)90NF03L(-1) |
|---|---|
| حجم فایل | 248.356 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 13 |
دانلود دیتاشیت ST(B,P)90NF03L(-1) |

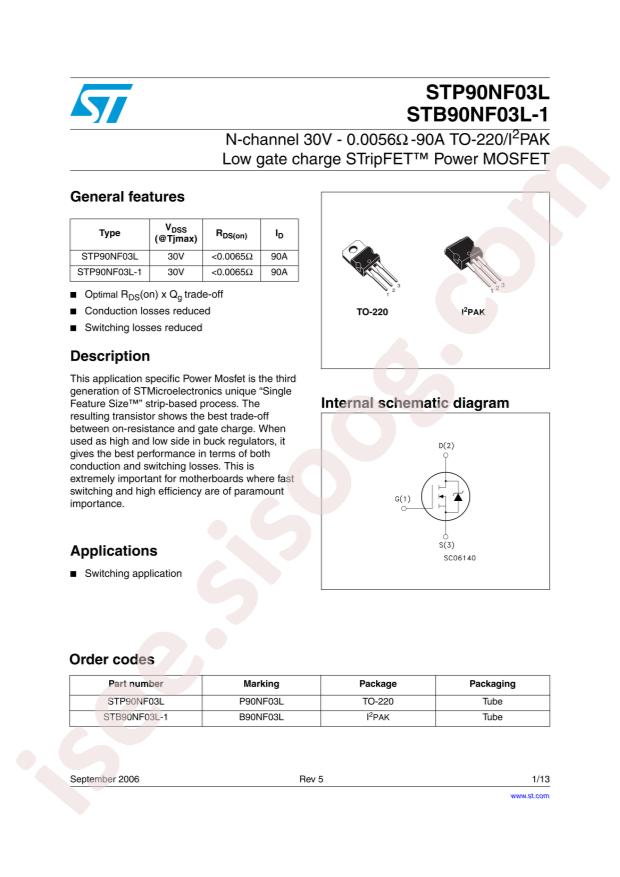

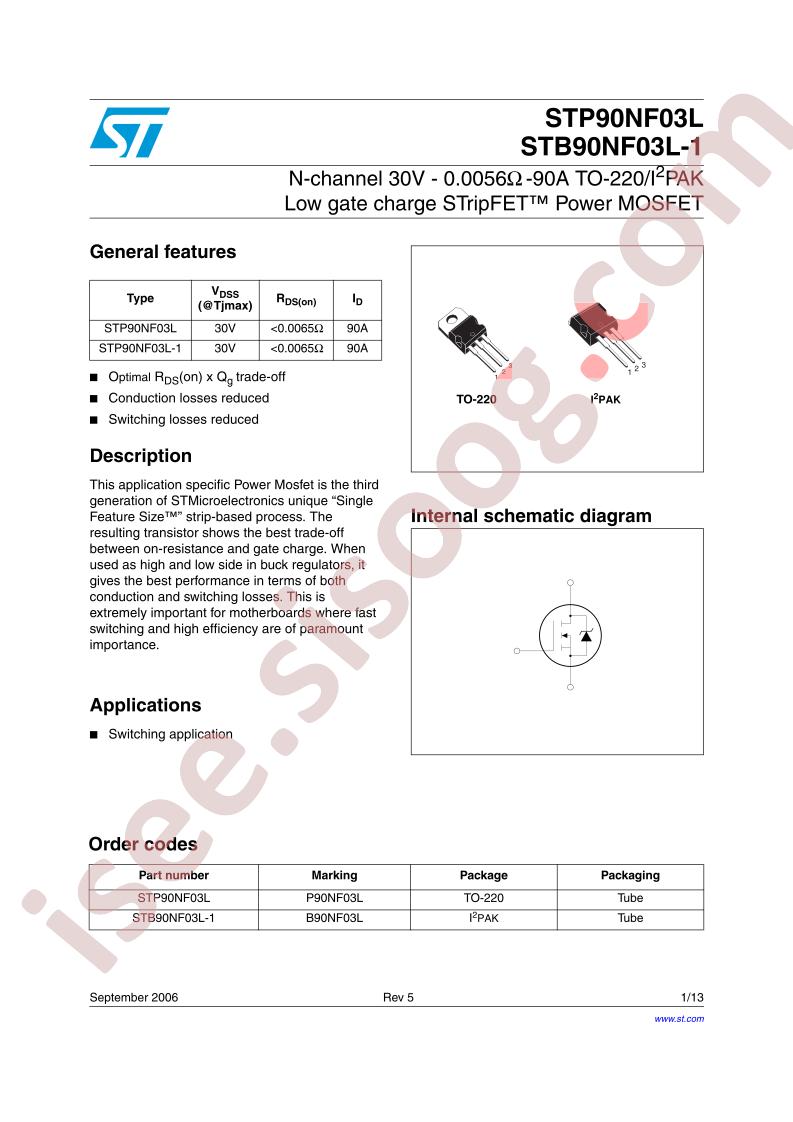

ST(B,P)90NF03L(-1) Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: STMicroelectronics STP90NF03L
- Operating Temperature: -65°C~+175°C@(Tj)
- Power Dissipation (Pd): 150W
- Total Gate Charge (Qg@Vgs): 47nC@5V
- Drain Source Voltage (Vdss): 30V
- Input Capacitance (Ciss@Vds): 2700pF@25V
- Continuous Drain Current (Id): 90A
- Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 6.5mΩ@10V,45A
- Package: TO-220
- Manufacturer: STMicroelectronics
- Series: STripFET™
- Packaging: Tube
- Part Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 6.5mOhm @ 45A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 47nC @ 5V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2700pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 150W (Tc)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
- Base Part Number: STP90N
- detail: N-Channel 30V 90A (Tc) 150W (Tc) Through Hole TO-220AB
