دیتاشیت MUR1560G
مشخصات دیتاشیت
| نام دیتاشیت | MUR1510(15,20,40,60) |
|---|---|
| حجم فایل | 138.583 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت MUR1510(15,20,40,60) |
MUR1510(15,20,40,60) Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: onsemi MUR1560G
- Diode Configuration: Single
- Reverse Voltage (Vr): 600V
- Operating Temperature: -65°C~+175°C@(Tj)
- Forward Voltage (Vf@If): 1.5V@15A
- Reverse Leakage Current: 10uA@600V
- Reverse Recovery Time (trr): 60ns
- Average Rectified Current (Io): 15A

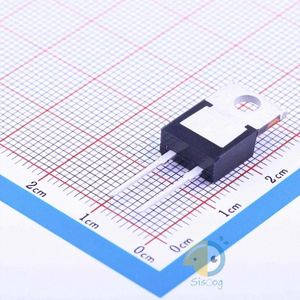

- Package: TO-220-2
- Manufacturer: onsemi
- Series: SWITCHMODE™
- Packaging: Tube
- Part Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600V
- Current - Average Rectified (Io): 15A
- Voltage - Forward (Vf) (Max) @ If: 1.5V @ 15A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 10µA @ 600V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: TO-220-2
- Supplier Device Package: TO-220AC
- Operating Temperature - Junction: -65°C ~ 175°C
- Base Part Number: MUR15
- detail: Diode Standard 600V 15A Through Hole TO-220AC
