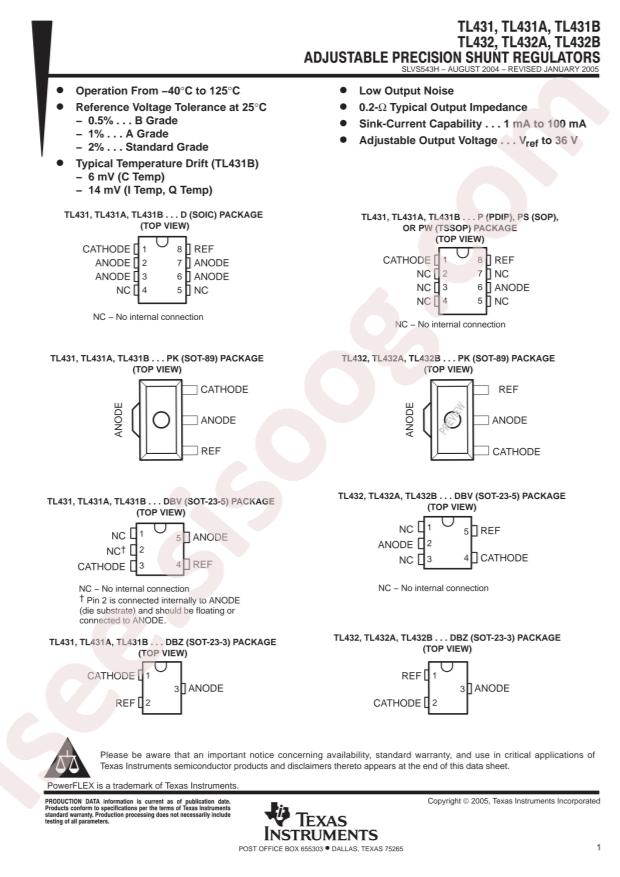

TL431ACLP دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TL431ACLP
|
|
حجم فایل
|
73.754
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
41
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Voltage References
-
Datasheet:
Texas Instruments TL431ACLP
-
Tolerance:
±1%
-
Output Type:
Adjustable
-
Input Voltage:
-
-
Output Current:
100mA
-
Output Voltage:
2.495V~36V
-
Reference Type:
parallel connection
-
Supply Current:
-
-
Noise - 10Hz to 10kHz:
-
-
Operating Temperature:
0°C~+70°C@(Ta)
-
Noise - 1/10Hz to 10Hz:
-
-
Temperature Coefficient:
-
-
Minimum Cathode Current for Regulation:
600uA
-
Package:
TO-92
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Obsolete
-
Voltage - Output (Min/Fixed):
2.495V
-
Voltage - Output (Max):
36V
-
Current - Output:
100mA
-
Noise - 0.1Hz to 10Hz:
-
-
Voltage - Input:
-
-
Current - Supply:
-
-
Current - Cathode:
1mA
-
Mounting Type:
Through Hole
-
Package / Case:
TO-226-3, TO-92-3 (TO-226AA)
-
Supplier Device Package:
TO-92-3
-
Base Part Number:
TL431
