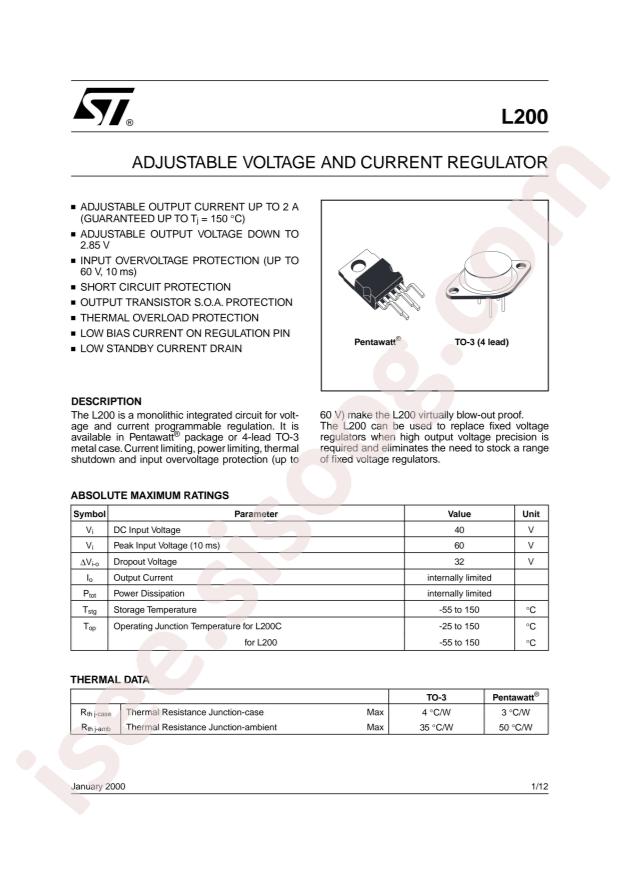

L200CV دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
L200CV
|
|
حجم فایل
|
72.977
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics L200CV
-
Output Type:
Adjustable
-
Output Current:
2A
-
Output Voltage:
2.85V~36V
-
Dropout Voltage:
2.5V@(1.5A)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
40V
-
Power Supply Rejection Ratio (PSRR):
60dB@(100Hz)
-
Package:
-
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
40V
-
Voltage - Output (Min/Fixed):
2.85V
-
Voltage - Output (Max):
36V
-
Voltage Dropout (Max):
2.5V @ 1.5A
-
Current - Output:
2A
-
Current - Quiescent (Iq):
9.2mA
-
PSRR:
60dB (100Hz)
-
Control Features:
-
-
Protection Features:
Over Temperature, Short Circuit
-
Operating Temperature:
-25°C ~ 150°C
-
Mounting Type:
Through Hole
-
Package / Case:
Pentawatt-5 (Vertical, Bent and Staggered Leads)
-
Supplier Device Package:
5-PENTAWATT
-
Base Part Number:
L200
-
detail:
Linear Voltage Regulator IC 1 Output 2A 5-PENTAWATT
