دیتاشیت BU508AF

BU508AF

مشخصات دیتاشیت

نام دیتاشیت BU508AF
حجم فایل 216.23 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت BU508AF

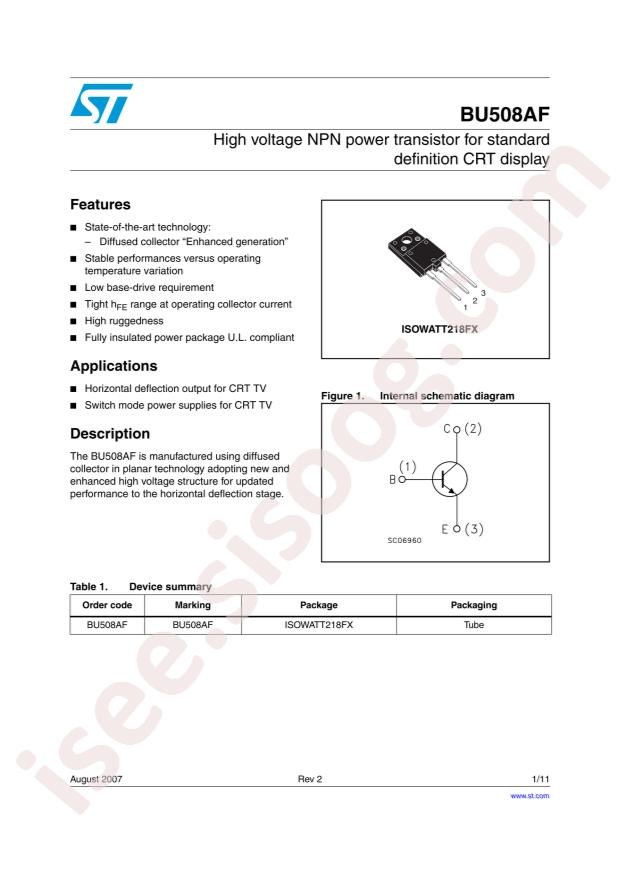

BU508AF Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: STMicroelectronics BU508AF
  • Transistor Type: NPN
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 8A
  • Power Dissipation (Pd): 50W
  • Transition Frequency (fT): -
  • DC Current Gain (hFE@Ic,Vce): 10@100mA,5V
  • Collector Cut-Off Current (Icbo): 200uA
  • Collector-Emitter Breakdown Voltage (Vceo): 700V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 1V@4.5A,1.6A
  • Package: ISOWATT-218FX
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Current - Collector (Ic) (Max): 8A
  • Voltage - Collector Emitter Breakdown (Max): 700V
  • Vce Saturation (Max) @ Ib, Ic: 1V @ 1.6A, 4.5A
  • Current - Collector Cutoff (Max): 200µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 10 @ 100mA, 5V
  • Power - Max: 50W
  • Frequency - Transition: -
  • Mounting Type: Through Hole
  • Package / Case: ISOWATT218FX
  • Supplier Device Package: ISOWATT-218FX
  • Base Part Number: BU508
