دیتاشیت SN7416N
مشخصات دیتاشیت
| نام دیتاشیت | SN5406, SN5416, SN7406, SN7416 |
|---|---|
| حجم فایل | 1178.424 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |
دانلود دیتاشیت SN5406, SN5416, SN7406, SN7416 |

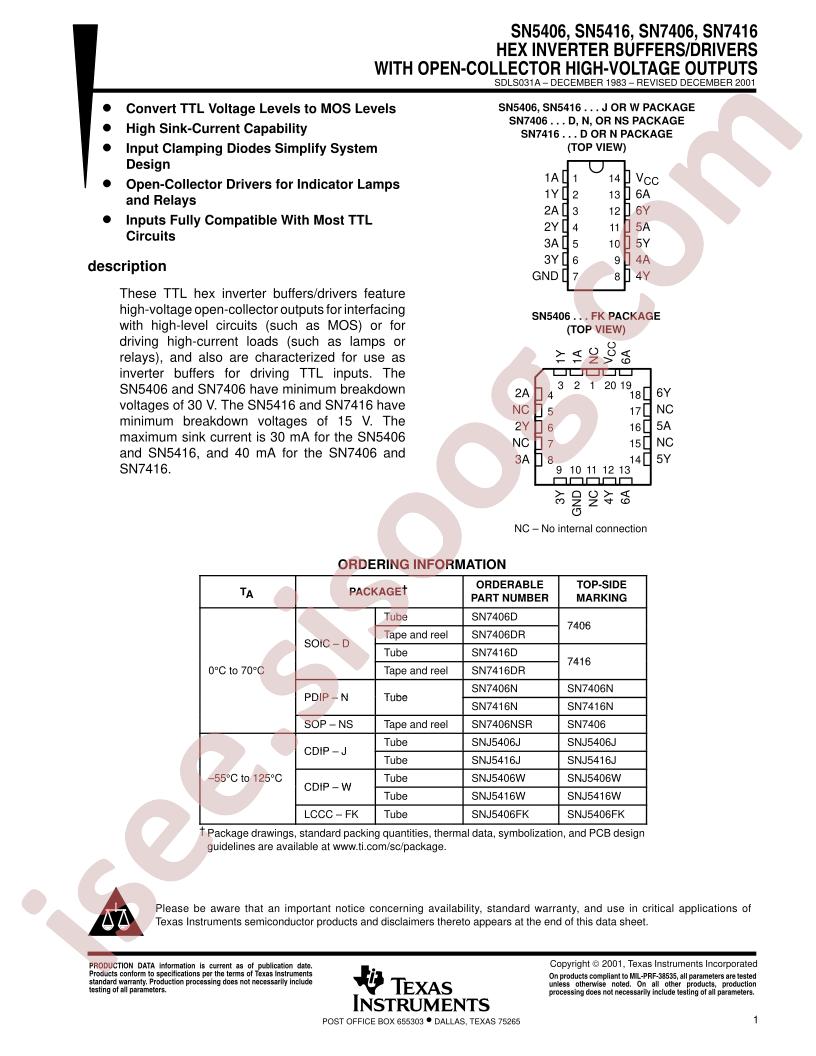

SN5406, SN5416, SN7406, SN7416 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 7400
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments SN7416N
- Sink Current: 40mA
- Number of Inputs: 1
- Number of Circuits: 6
- Low level range (VIL): 0.8V
- Max Propagation Delay: 23ns@5V,15pF
- Operating Temperature: 0°C~+70°C
- High level range (VIH): 2V
- Supply Voltage(Single): 4.75V~5.25V
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Logic Level - High: 2V
- Base Part Number: SN741
- Supplier Device Package: 14-PDIP
- Logic Level - Low: 0.8V
- Package / Case: 14-DIP (0.300", 7.62mm)
- Current - Output High, Low: -, 40mA
- Features: Open Collector
- Mounting Type: Through Hole
- Packaging: Tube
- Voltage - Supply: 4.75V ~ 5.25V
- Max Propagation Delay @ V, Max CL: 23ns @ 5V, 15pF
- Part Status: Active
- Logic Type: Inverter
- detail: Inverter IC 6 Channel Open Collector 14-PDIP
