دیتاشیت STW20NK50Z

STW20NK50Z

مشخصات دیتاشیت

نام دیتاشیت STW20NK50Z
حجم فایل 501.307 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت STW20NK50Z

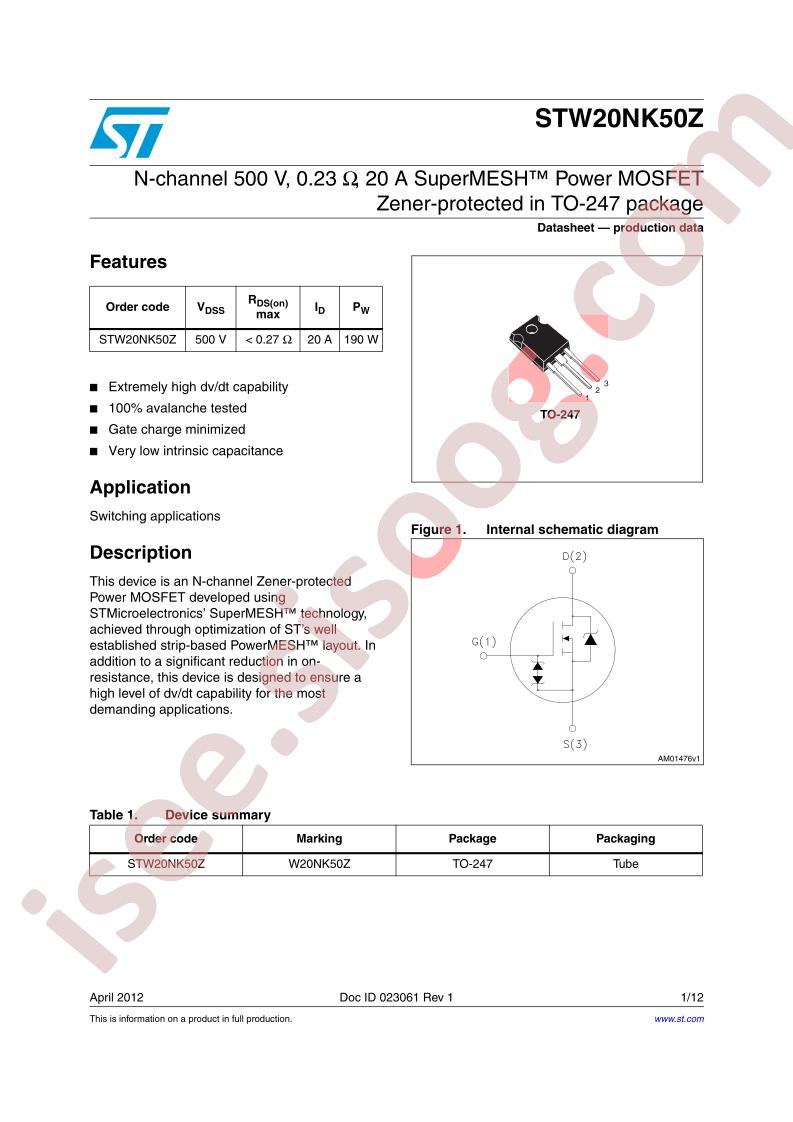

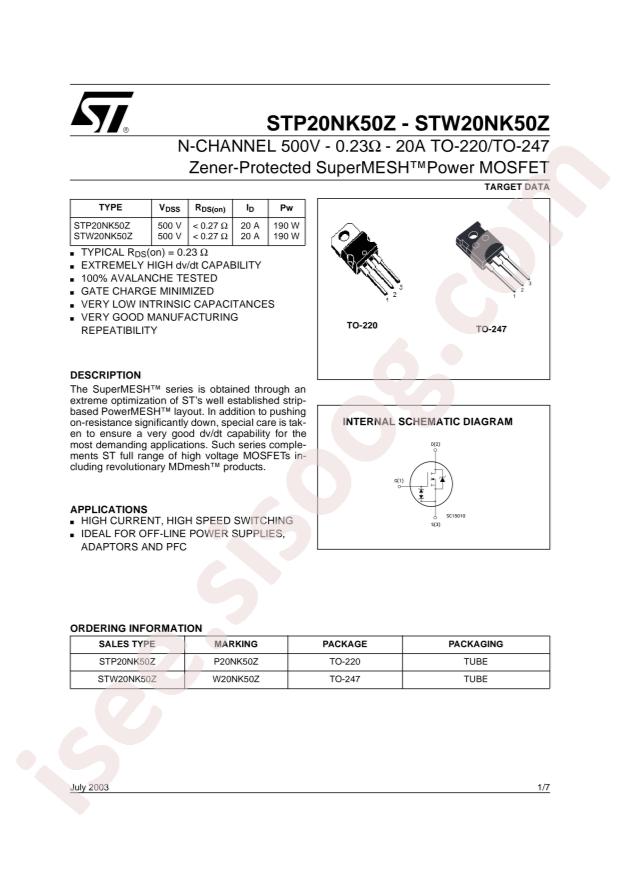

STW20NK50Z Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: SuperMESH™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 500V
  • Current - Continuous Drain (Id) @ 25°C: 17A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 270mOhm @ 8.5A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 119nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 2600pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 190W (Tc)
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247-3
  • Package / Case: TO-247-3
  • Base Part Number: STW20N
  • detail: N-Channel 500V 17A (Tc) 190W (Tc) Through Hole TO-247-3
