دیتاشیت VIPER27LN

VIPER27

مشخصات دیتاشیت

نام دیتاشیت VIPER27
حجم فایل 1298.628 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

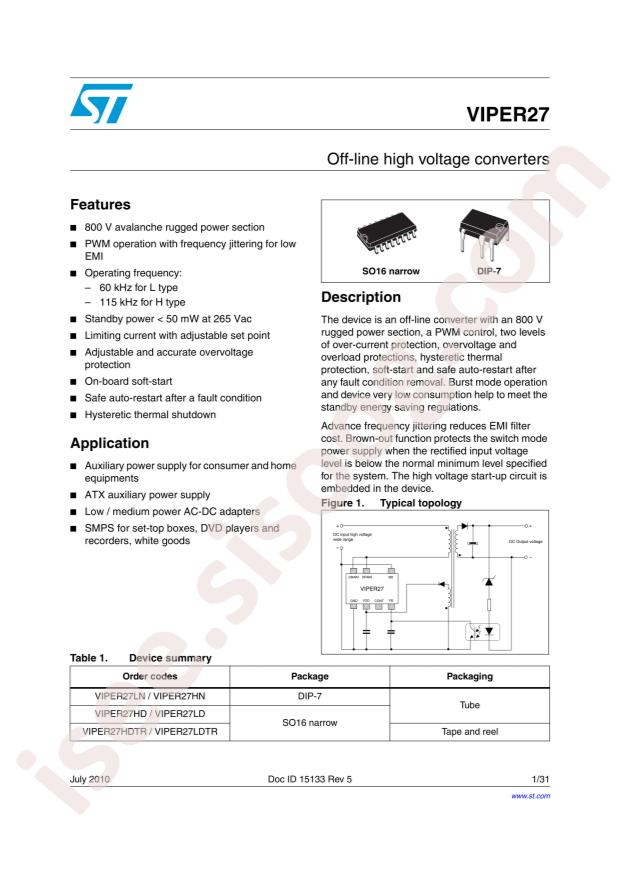

دانلود دیتاشیت VIPER27

VIPER27 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Flyback
  • Datasheet: STMicroelectronics VIPER27LN
  • Duty Cycle: 80%
  • Supply Voltage: 8.5V~23.5V
  • Output Isolation: Isolation
  • Breakdown Voltage: 800V
  • Switching Frequency: 60kHz
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: DIP-7
  • Manufacturer: STMicroelectronics
  • Series: VIPer™ plus
  • Packaging: Tube
  • Part Status: Active
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 800V
  • Voltage - Start Up: 14V
  • Voltage - Supply (Vcc/Vdd): 8.5V ~ 23.5V
  • Frequency - Switching: 60kHz
  • Power (Watts): 20W
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage
  • Control Features: -
  • Package / Case: 8-DIP (0.300", 7.62mm), 7 Leads
  • Supplier Device Package: 7-DIP
  • Mounting Type: Through Hole
  • Base Part Number: VIPER27
  • detail: Converter Offline Flyback Topology 60kHz 7-DIP
