دیتاشیت ULN2004AN

مشخصات دیتاشیت

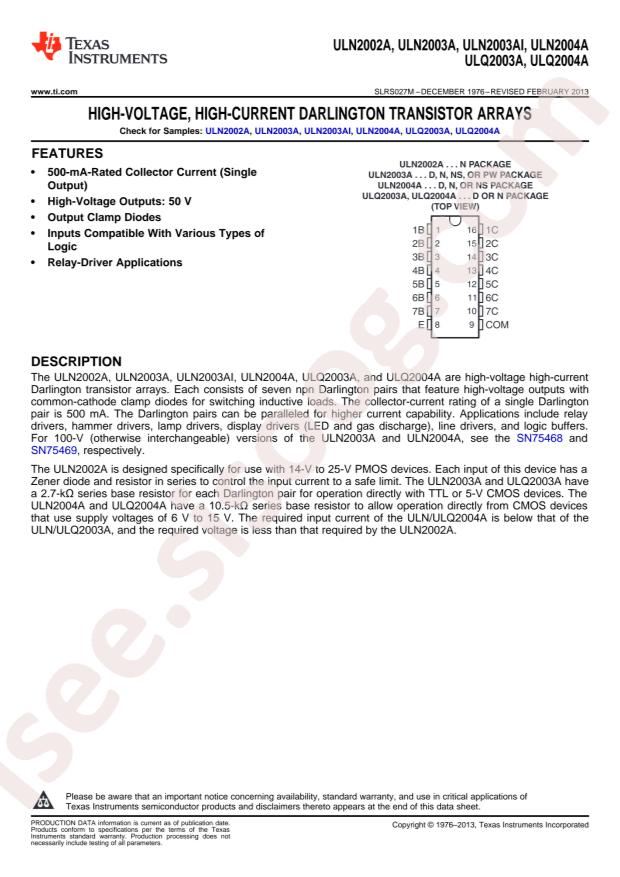

دانلود دیتاشیت ULN2001A - 4A, ULQ2003A - 4A	ULN2001A - 4A, ULQ2003A - 4A Datasheet

Frequency - Transition: -
Transistor Type: 7 NPN Darlington
Power - Max: -
Current - Collector (Ic) (Max): 500mA
Voltage - Collector Emitter Breakdown (Max): 50V
Manufacturer: Texas Instruments
Part Status: Active
DC Current Gain (hFE) (Min) @ Ic, Vce: -
Vce Saturation (Max) @ Ib, Ic: 1.6V @ 500µA, 350mA
Operating Temperature: -20°C ~ 70°C (TA)
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Series: Automotive, AEC-Q100
Base Part Number: ULN2004
Current - Collector Cutoff (Max): 50µA
Mounting Type: Through Hole
Supplier Device Package: 16-DIP
detail: Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Through Hole 16-DIP
