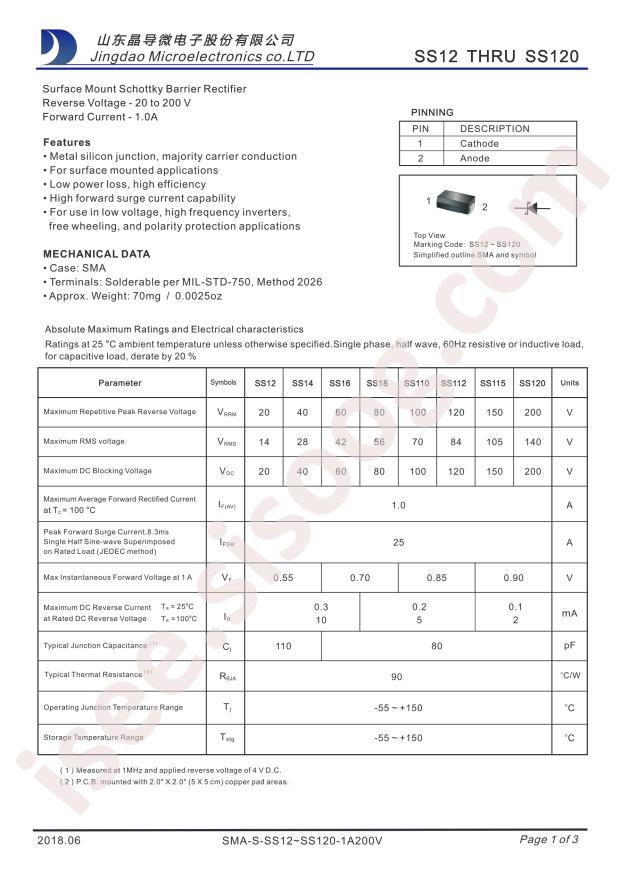

SS16 Datasheet
Datasheet specifications
| Datasheet's name | SS16 |
|---|---|
| File size | 82.173 KB |
| File type | |
| Number of pages | 3 |
Download Datasheet SS16 |
Download Datasheet |
|---|
Other documentations
SS12 - S100 5 pages
SS13 2 pages
SS13 3 pages
SS16 3 pages
SS16 2 pages
SS16 3 pages
SS16 2 pages
SS16 3 pages
SS16 2 pages
SS16 3 pages
SS16 2 pages
SS16 7 pages
SS16 2 pages
SS16 2 pages
SS16 7 pages
SS16 4 pages
SS16 4 pages
SS16 3 pages
SS16 3 pages
SS16 2 pages
SS16 3 pages
SS16 3 pages
SS16 4 pages
SS16 2 pages
SS16 4 pages
SS16 2 pages
SS16 2 pages
SS16 5 pages
Technical specifications
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: Foshan Blue Rocket Elec SS16
- Diode Configuration: Single
- Reverse Voltage (Vr): 60V
- Forward Voltage (Vf@If): 700mV@1A
- Reverse Leakage Current (Ir): 300uA@60V
- Average Rectified Current (Io): 1A
- Package: SMA
- Manufacturer: Foshan Blue Rocket Elec
- Peak forward surge current: 25A
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Last Time Buy
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 700mV @ 1A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 200µA @ 60V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA (DO-214AC)
- Operating Temperature - Junction: -65°C ~ 125°C
- Base Part Number: SS16
