دیتاشیت SN74HC574N
مشخصات دیتاشیت
| نام دیتاشیت | SN54HC574, SN74HC574 |
|---|---|
| حجم فایل | 1557.795 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 25 |
دانلود دیتاشیت SN54HC574, SN74HC574 |

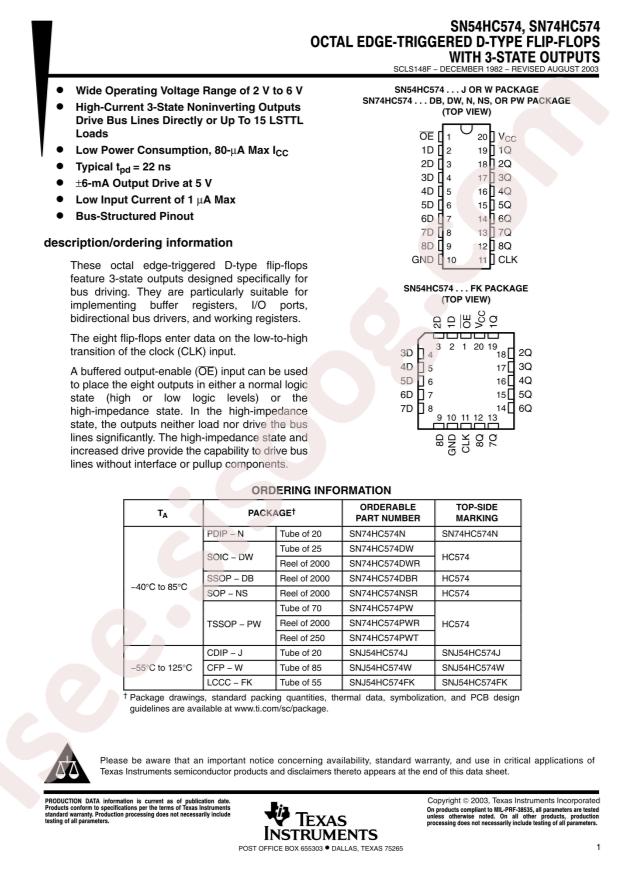

SN54HC574, SN74HC574 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: D-Type
- Series: 74HC
- Category: Logic ICs/Flip Flops
- Function: -
- Datasheet: Texas Instruments SN74HC574N
- Output Type: Tri-State;Non-Inverted
- Sink Current: 7.8mA
- Trigger Type: 上升沿
- Source Current: 7.8mA
- Supply Voltage: 2V~6V
- Clock Frequency: 36MHz
- Input Capacitance: 3pF
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Quiescent Current (Iq): 8uA
- Maximum Propagation Delay: 46ns@6V,150pF
- Number of Bits per Element: 8
- Package: DIP-20
- Manufacturer: Texas Instruments
- Current - Quiescent (Iq): 8µA
- Mounting Type: Through Hole
- Packaging: Tube
- Current - Output High, Low: 7.8mA, 7.8mA
- Max Propagation Delay @ V, Max CL: 46ns @ 6V, 150pF
- Package / Case: 20-DIP (0.300", 7.62mm)
- Part Status: Active
- Base Part Number: SN74HC5
- Voltage - Supply: 2V ~ 6V
- Supplier Device Package: 20-PDIP
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
