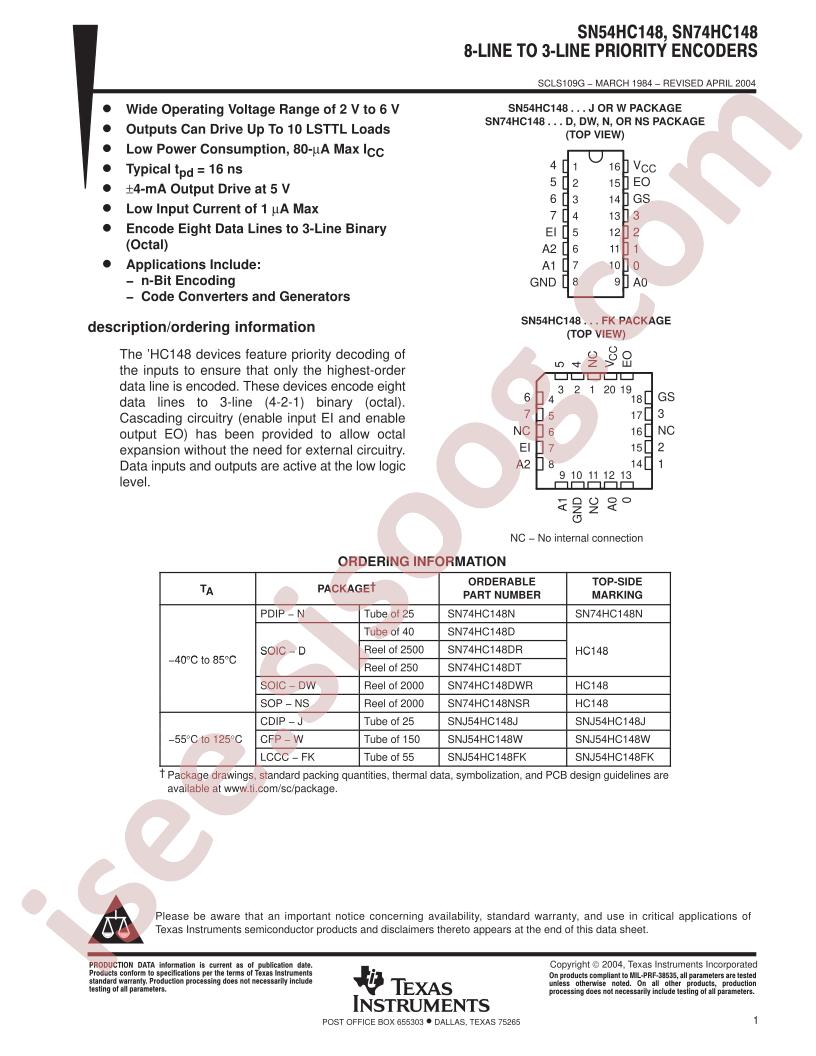

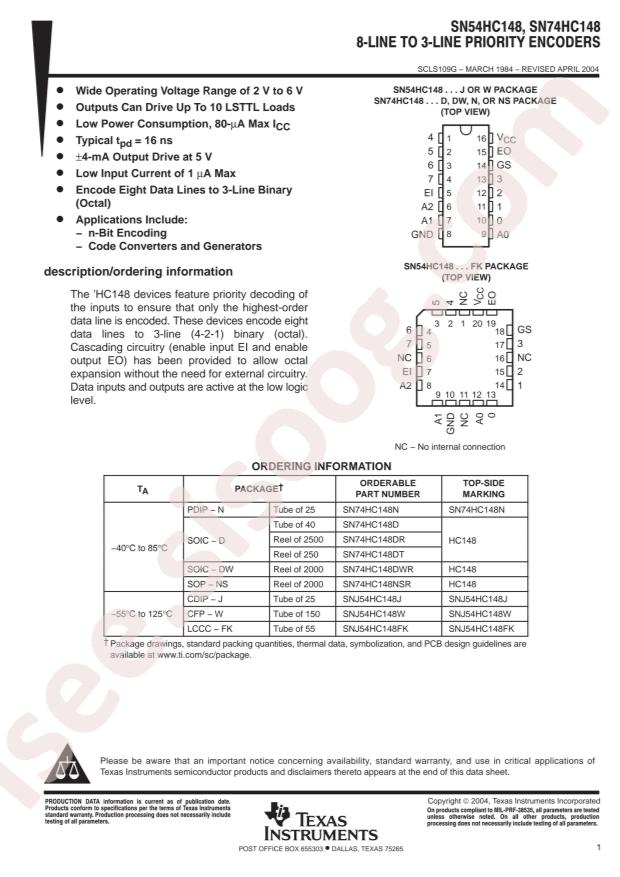

SN74HC148N Datasheet
Datasheet specifications
| Datasheet's name | SN74HC148N |
|---|---|
| File size | 85.165 KB |
| File type | |
| Number of pages | 17 |
Download Datasheet SN74HC148N |
Download Datasheet |
|---|
Other documentations
SN54HC148, SN74HC148 18 pages
Technical specifications
- RoHS: true
- Type: Priority Encoders
- Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
- Datasheet: Texas Instruments SN74HC148N
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Operating temperature: -40°C~+85°C
- Voltage Supply Source: Single supply
- Package: DIP-16
- Manufacturer: Texas Instruments
- Supplier Device Package: 16-PDIP
- Current - Output High, Low: 5.2mA, 5.2mA
- Circuit: 1 x 8:3
- Mounting Type: Through Hole
- Base Part Number: SN74HC1
- Packaging: Tube
- Series: 74HC
- Independent Circuits: 1
- Part Status: Active
- Package / Case: 16-DIP (0.300", 7.62mm)
- Voltage - Supply: 2V ~ 6V
