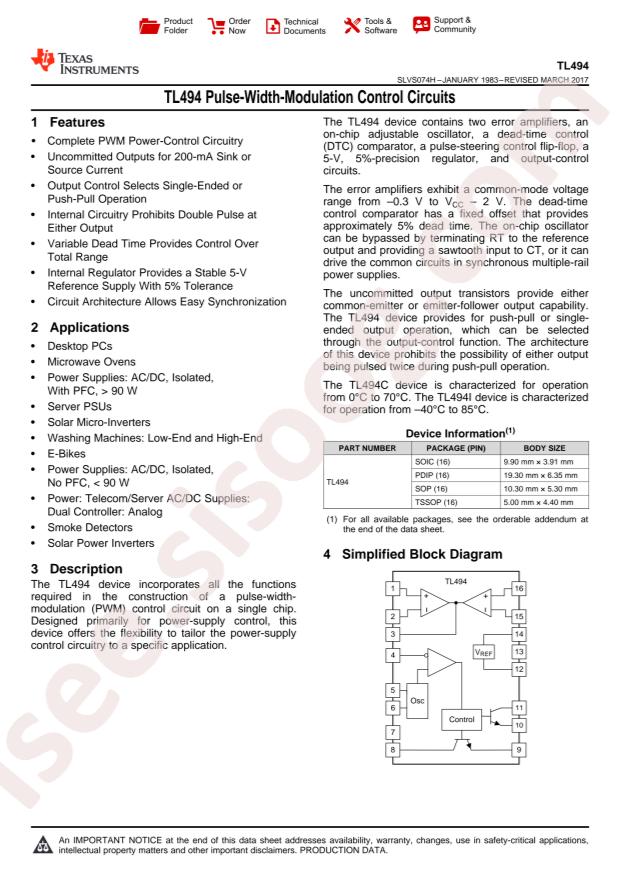

TL494IN دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TL494IN
|
|
حجم فایل
|
106.208
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
33
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Controllers
-
Function:
boost converterType;Step-down type;Buck-boost type
-
Topology:
Step-down;Boost;Flyback;Forward;Full-Bridge;Half-Bridge;Push-pull
-
Datasheet:
Texas Instruments TL494IN
-
Input Voltage:
7V~40V
-
Duty Cycle (Max):
45%
-
Number of Outputs:
2
-
Switching Frequency:
300kHz
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
NO
-
Package:
DIP-16
-
Manufacturer:
Texas Instruments
-
Part Status:
Active
-
Package / Case:
16-DIP (0.300", 7.62mm)
-
Packaging:
Tube
-
Frequency - Switching:
1kHz ~ 300kHz
-
Supplier Device Package:
16-PDIP
-
Serial Interfaces:
-
-
Synchronous Rectifier:
No
-
Clock Sync:
No
-
Mounting Type:
Through Hole
-
Output Configuration:
Positive
-
Base Part Number:
TL494
-
Series:
-
-
Output Type:
Transistor Driver
-
Control Features:
Dead Time Control, Frequency Control
-
Output Phases:
1
-
Voltage - Supply (Vcc/Vdd):
7V ~ 40V
-
detail:
Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-PDIP
