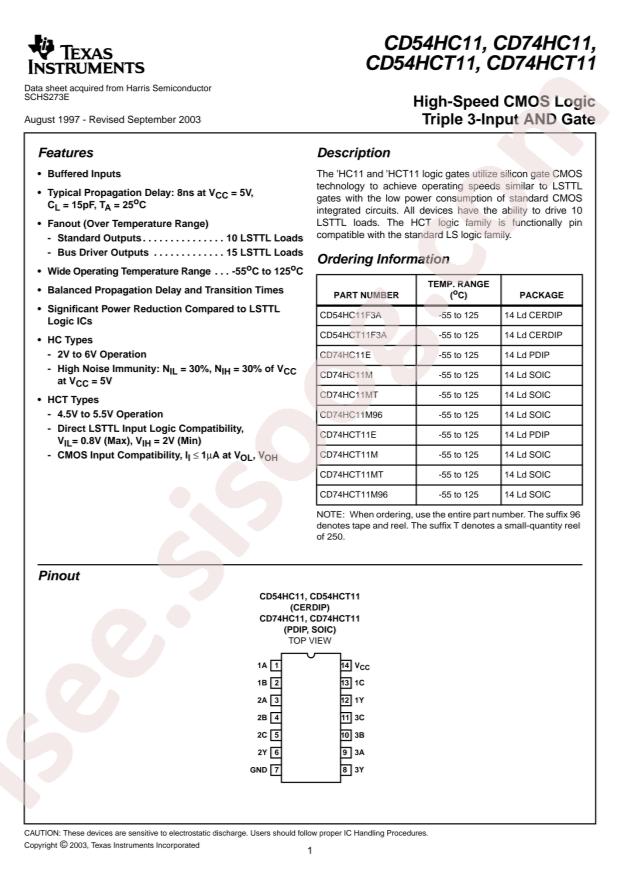

دیتاشیت CD74HC11E
مشخصات دیتاشیت
| نام دیتاشیت |
CD54,74HC(T)11
|
| حجم فایل |
984.748
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
RoHS:
true
-
Series:
74HC
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments CD74HC11E
-
Sink Current:
5.2mA
-
Source Current:
5.2mA
-
Supply Voltage:
2V~6V
-
Logic Gate Type:
And
-
Number of Channels:
3
-
Low Level Range (VIL):
0.5V~1.8V
-
Operating Temperature:
-55°C~+125°C
-
High Level Range (VIH):
1.5V~4.2V
-
Propagation Delay Time:
17ns@6V,50pF
-
Quiescent Current (Max):
2uA
-
Package:
PDIP-14
-
Manufacturer:
Texas Instruments
-
Mounting Type:
Through Hole
-
Logic Level - Low:
0.5V ~ 1.8V
-
Current - Quiescent (Max):
2µA
-
Voltage - Supply:
2V ~ 6V
-
Number of Circuits:
3
-
Packaging:
Tube
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Logic Level - High:
1.5V ~ 4.2V
-
Part Status:
Active
-
Current - Output High, Low:
5.2mA, 5.2mA
-
Features:
-
-
Base Part Number:
74HC11
-
Supplier Device Package:
14-PDIP
-
Number of Inputs:
3
-
Logic Type:
AND Gate
-
Max Propagation Delay @ V, Max CL:
17ns @ 6V, 50pF
-
detail:
AND Gate IC 3 Channel 14-PDIP
