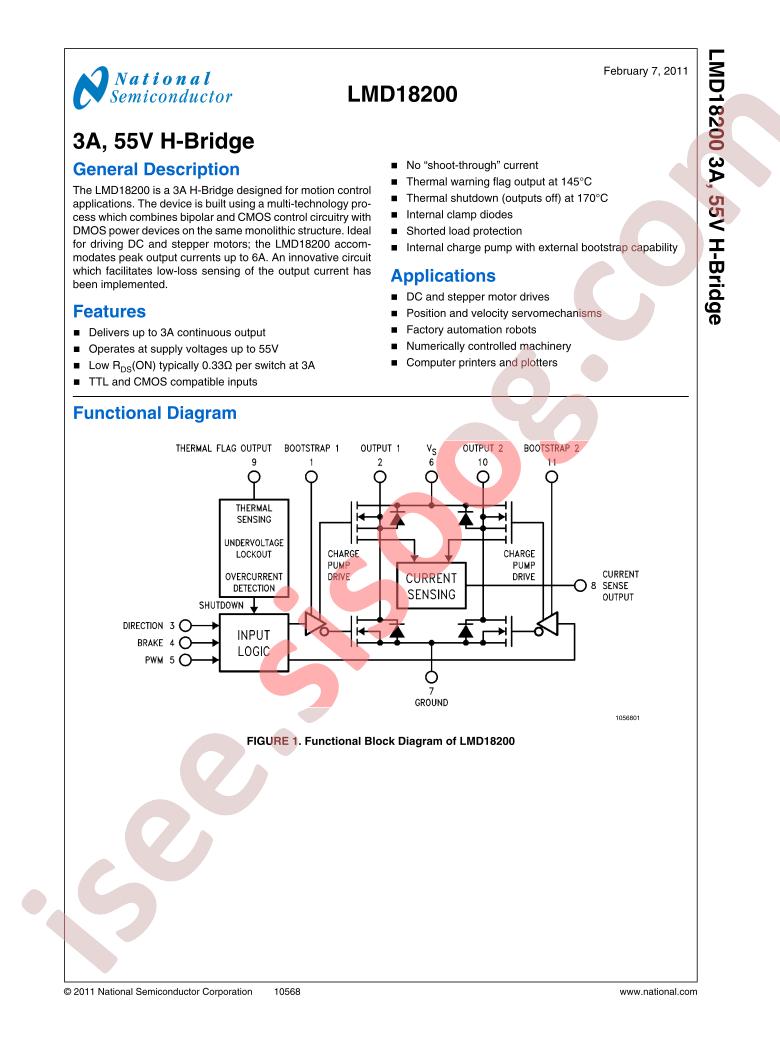

دیتاشیت LMD18200T

LMD18200

مشخصات دیتاشیت

نام دیتاشیت LMD18200
حجم فایل 735.144 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت LMD18200

LMD18200 Datasheet

مشخصات

  • Applications: General Purpose
  • Manufacturer: Texas Instruments
  • Motor Type - AC, DC: Brushed DC
  • Motor Type - Stepper: Bipolar
  • Technology: Bi-CMOS, DMOS
  • Series: -
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Voltage - Supply: 12V ~ 55V
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Packaging: Tube
  • Interface: Parallel
  • Package / Case: TO-220-11 (Formed Leads)
  • Step Resolution: -
  • Voltage - Load: 12V ~ 55V
  • Part Status: Not For New Designs
  • Output Configuration: Low Side (2)
  • Base Part Number: LMD18200
  • Supplier Device Package: TO-220-11
  • Mounting Type: Through Hole
  • Current - Output: 3A
