دیتاشیت LM317AT
مشخصات دیتاشیت
| نام دیتاشیت | LM317A Datasheet |
|---|---|
| حجم فایل | 4961.904 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 43 |

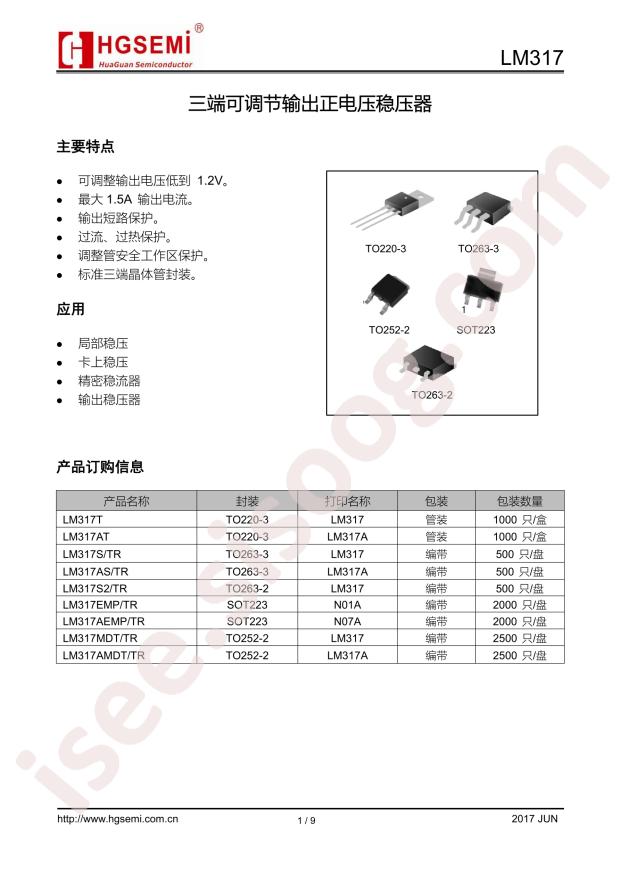

دانلود دیتاشیت LM317A Datasheet |
LM317A Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM317AT
- Output Type: Adjustable
- Output Current: 1.5A
- Output Voltage: 1.25V~37V
- Dropout Voltage: -
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 40V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 10mA
- Package: TO-220
- Manufacturer: Texas Instruments
- Base Part Number: LM317
- Supplier Device Package: TO-220-3
- Voltage - Output (Max): 37V
- Output Configuration: Positive
- Current - Quiescent (Iq): 10mA
- PSRR: 80dB ~ 65dB (120Hz)
- Voltage Dropout (Max): -
- Number of Regulators: 1
- Mounting Type: Through Hole
- Packaging: Tube
- Voltage - Output (Min/Fixed): 1.25V
- Protection Features: Over Temperature, Short Circuit
- Series: -
- Voltage - Input (Max): 40V
- Current - Output: 1.5A
- Part Status: Not For New Designs
- Package / Case: TO-220-3
- Control Features: -
