- دیتاشیت UC3856N

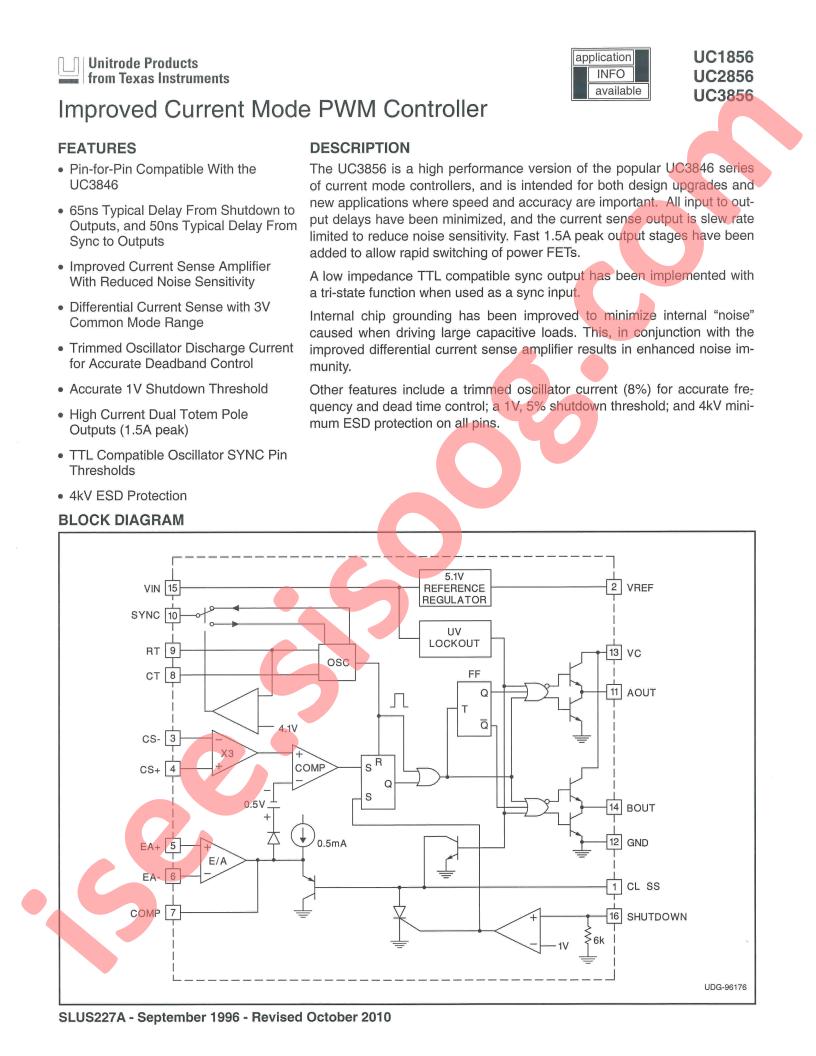

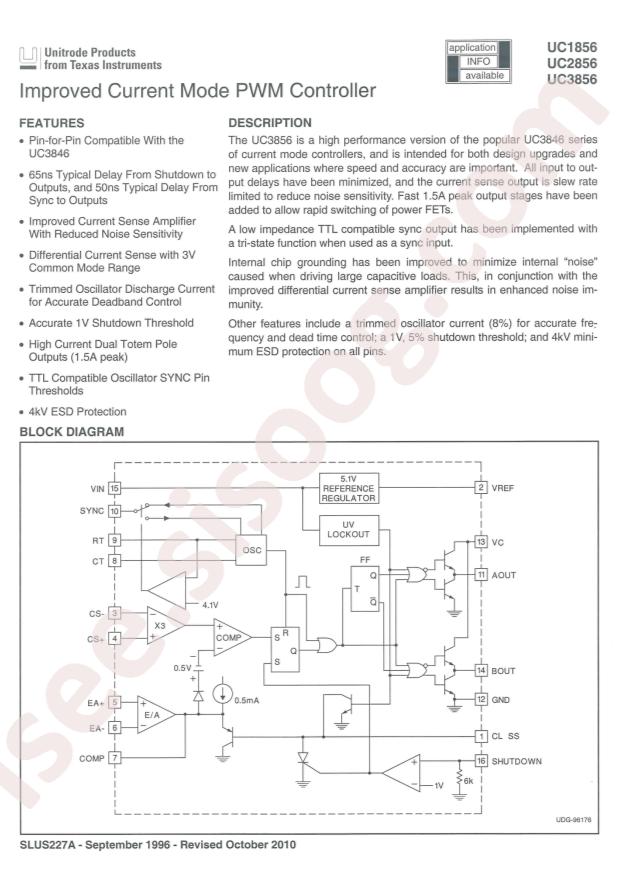

UC3856N دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UC3856N |
|---|---|
| حجم فایل | 77.734 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت UC3856N |
دانلود دیتاشیت |
|---|
سایر مستندات
Power Management Guide 93 pages
UC1856, 2856, 3856 14 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Datasheet: Texas Instruments UC3856N
- Package: DIP-16
- Manufacturer: Texas Instruments
- Part Status: Active
- Package / Case: 16-DIP (0.300", 7.62mm)
- Packaging: Tube
- Topology: Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
- Frequency - Switching: 200kHz
- Supplier Device Package: 16-PDIP
- Number of Outputs: 2
- Serial Interfaces: -
- Synchronous Rectifier: Yes
- Function: Step-Up, Step-Down, Step-Up/Step-Down
- Clock Sync: Yes
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Through Hole
- Output Configuration: Positive
- Base Part Number: UC385
- Series: -
- Output Type: Transistor Driver
- Control Features: Enable, Frequency Control, Soft Start
- Output Phases: 1
- Duty Cycle (Max): 47%
- Voltage - Supply (Vcc/Vdd): 7V ~ 40V
- detail: Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-PDIP
