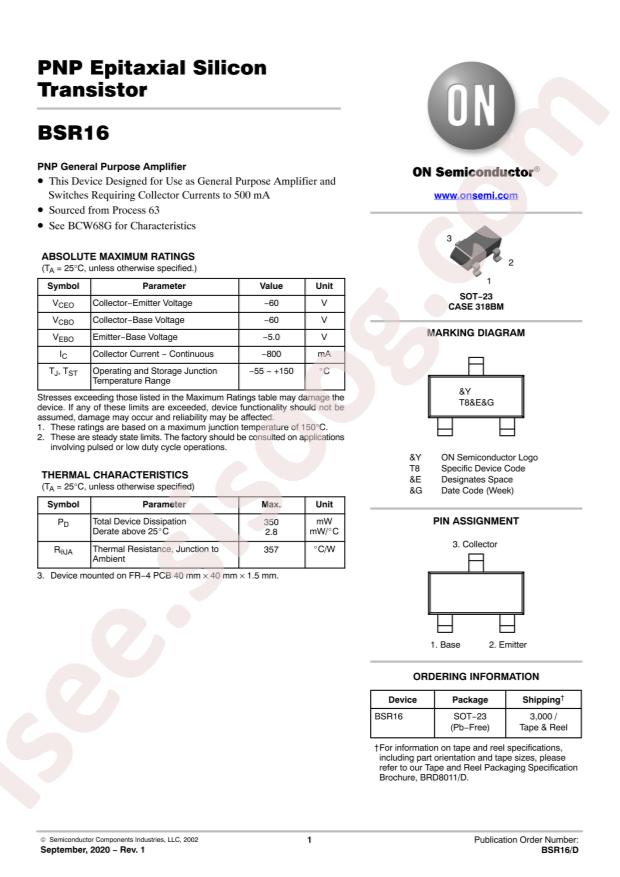

دیتاشیت BSR16
مشخصات دیتاشیت
| نام دیتاشیت |
BSR16
|
| حجم فایل |
169.077
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi BSR16
-
Transistor Type:
PNP
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
800mA
-
Transition Frequency (fT):
200MHz
-
DC Current Gain (hFE@Ic,Vce):
100@150mA,10V
-
Collector Cut-Off Current (Icbo):
10nA
-
Collector-Emitter Breakdown Voltage (Vceo):
60V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
1.6V@50mA,500mA
-
Package:
SOT-23-3
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
800mA
-
Voltage - Collector Emitter Breakdown (Max):
60V
-
Vce Saturation (Max) @ Ib, Ic:
1.6V @ 50mA, 500mA
-
Current - Collector Cutoff (Max):
10nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
100 @ 150mA, 10V
-
Power - Max:
350mW
-
Frequency - Transition:
200MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Supplier Device Package:
SOT-23-3
-
Base Part Number:
BSR16
