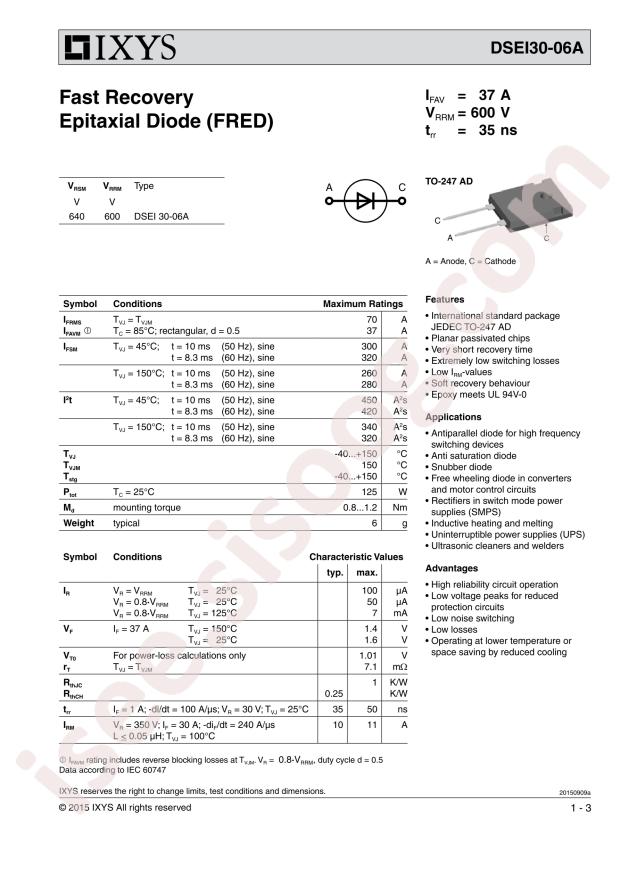

دیتاشیت DSEI30-06A
مشخصات دیتاشیت
| نام دیتاشیت | DSEI30-06A Type |
|---|---|
| حجم فایل | 227.421 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 3 |
دانلود دیتاشیت DSEI30-06A Type |
DSEI30-06A Type Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: Littelfuse/IXYS DSEI30-06A
- Diode Configuration: Single
- Reverse Voltage (Vr): 600V
- Operating Temperature: -40°C~+150°C@(Tvj)
- Forward Voltage (Vf@If): 1.6V@37A
- Reverse Leakage Current: 100uA@600V
- Reverse Recovery Time (trr): 35ns
- Average Rectified Current (Io): 37A
- Package: TO-247-2
- Manufacturer: IXYS
- Series: -
- Packaging: Tube
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600V
- Current - Average Rectified (Io): 37A
- Voltage - Forward (Vf) (Max) @ If: 1.6V @ 37A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 100µA @ 600V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: TO-247-2
- Supplier Device Package: TO-247AD
- Operating Temperature - Junction: -40°C ~ 150°C
