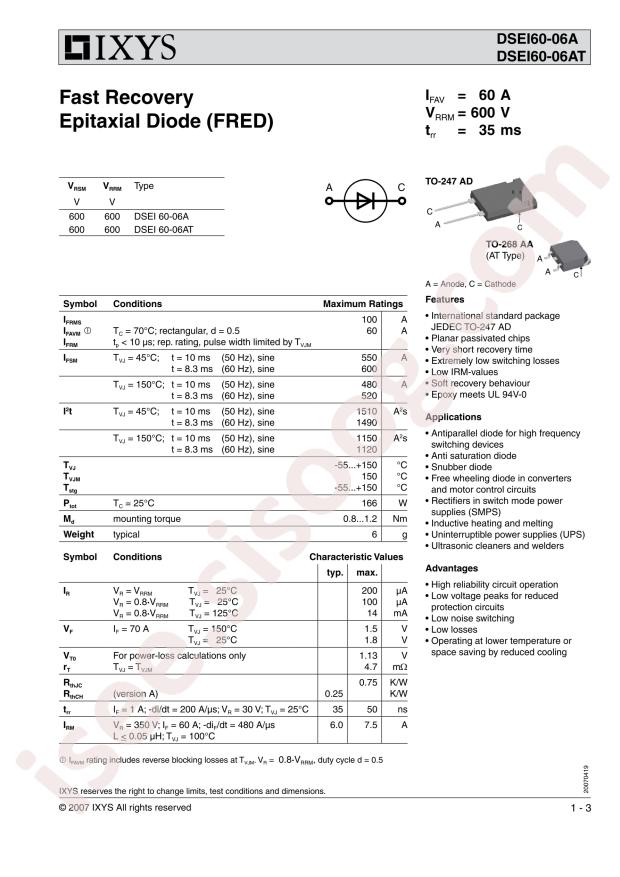

دیتاشیت DSEI60-06A
مشخصات دیتاشیت
| نام دیتاشیت |
DSEI60-06A/AT
|
| حجم فایل |
400.638
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
3
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
Littelfuse/IXYS DSEI60-06A
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
600V
-
Operating Temperature:
-55°C~+150°C@(Tvj)
-
Forward Voltage (Vf@If):
1.8V@70A
-
Reverse Leakage Current:
20uA@600V
-
Reverse Recovery Time (trr):
35ns
-
Average Rectified Current (Io):
60A
-
Package:
TO-247-2
-
Manufacturer:
IXYS
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
600V
-
Current - Average Rectified (Io):
60A
-
Voltage - Forward (Vf) (Max) @ If:
1.8V @ 70A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
200µA @ 600V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-2
-
Supplier Device Package:
TO-247AD
-
Operating Temperature - Junction:
-40°C ~ 150°C
-
detail:
Diode Standard 600V 60A Through Hole TO-247AD
