دیتاشیت TLC271CP
مشخصات دیتاشیت
| نام دیتاشیت | TLC271(A,B) Datasheet |
|---|---|
| حجم فایل | 2419.199 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 84 |

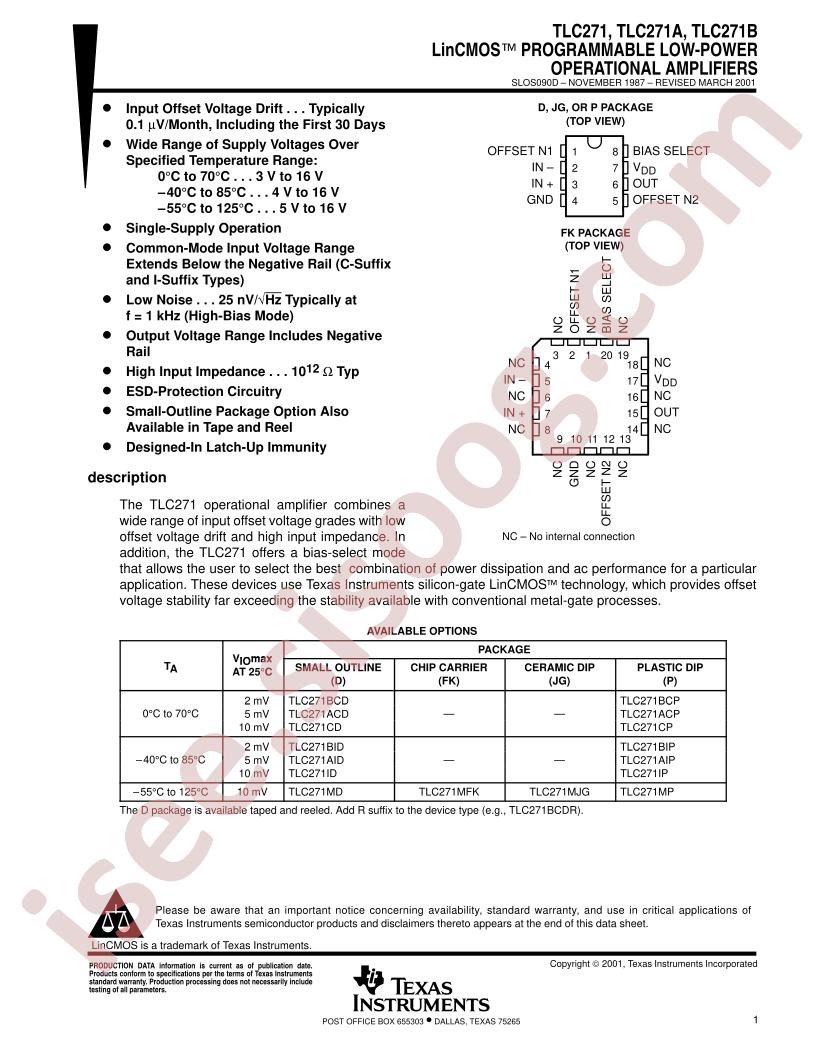

دانلود دیتاشیت TLC271(A,B) Datasheet |
TLC271(A,B) Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Datasheet: Texas Instruments TLC271CP
- -3db Bandwidth: -
- Output Current: 30mA
- Number of Circuits: 1
- Operating Temperature: 0°C~+70°C
- Current - Input Bias(Ib): 0.7pA
- Gain Bandwidth Product(GBP): 2.2MHz
- Package: PDIP-8
- Manufacturer: Texas Instruments
- Current - Output / Channel: 30mA
- Slew Rate: 5.3V/µs
- Voltage - Input Offset: 1.1mV
- Part Status: Active
- Packaging: Tube
- Supplier Device Package: 8-PDIP
- Package / Case: 8-DIP (0.300", 7.62mm)
- Voltage - Supply, Single/Dual (±): 3V ~ 16V, ±1.5V ~ 8V
- Series: LinCMOS™
- Output Type: -
- Base Part Number: TLC271
- Current - Supply: 950µA
- Mounting Type: Through Hole
- Amplifier Type: General Purpose
- Current - Input Bias: 0.7pA
- Gain Bandwidth Product: 2.2MHz
