دیتاشیت SN74HC14N
مشخصات دیتاشیت
| نام دیتاشیت |
SN54,74HC14
|
| حجم فایل |
1388.254
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
31
|
مشخصات
-
RoHS:
true
-
Series:
74HC
-
Category:
Logic ICs/Inverters
-
Datasheet:

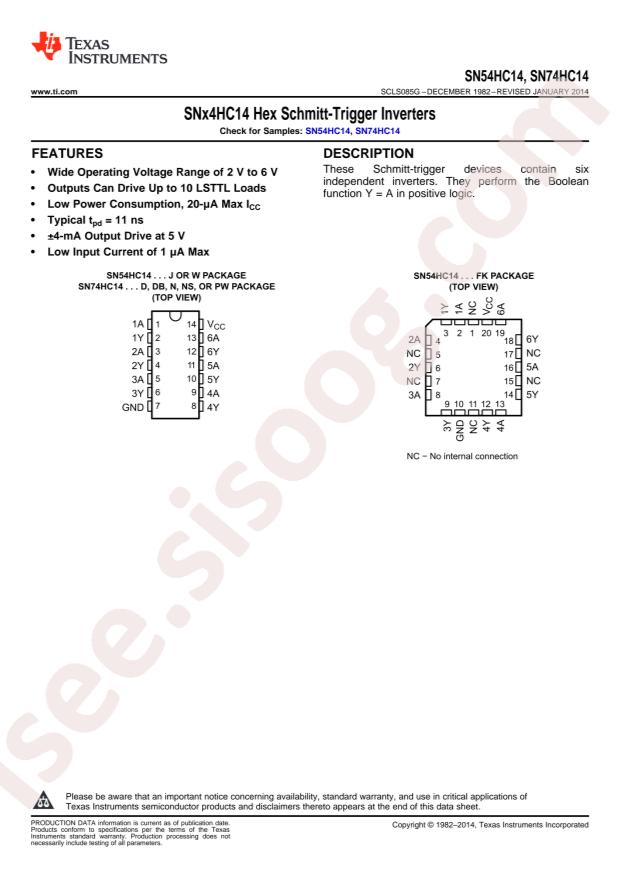

Texas Instruments SN74HC14N
-
Input Type:
Schmitt Trigger
-
Sink Current:
5.2mA
-
Source Current:
5.2mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Supply Current (Max):
2uA
-
Low level range (VIL):
0.3V~1.2V
-
Max Propagation Delay:
21ns@6V,50pF
-
Operating Temperature:
-40°C~+85°C
-
High level range (VIH):
1.5V~4.2V
-
Supply Voltage(Single):
2V~6V
-
Package:
DIP-14
-
Manufacturer:
Texas Instruments
-
Supplier Device Package:
14-PDIP
-
Mounting Type:
Through Hole
-
Logic Level - High:
1.5V ~ 4.2V
-
Features:
Schmitt Trigger
-
Current - Quiescent (Max):
2µA
-
Current - Output High, Low:
5.2mA, 5.2mA
-
Packaging:
Tube
-
Logic Level - Low:
0.3V ~ 1.2V
-
Voltage - Supply:
2V ~ 6V
-
Base Part Number:
SN74HC1
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Logic Type:
Inverter
-
Max Propagation Delay @ V, Max CL:
21ns @ 6V, 50pF
-
Part Status:
Active
-
detail:
Inverter IC 6 Channel Schmitt Trigger 14-PDIP
