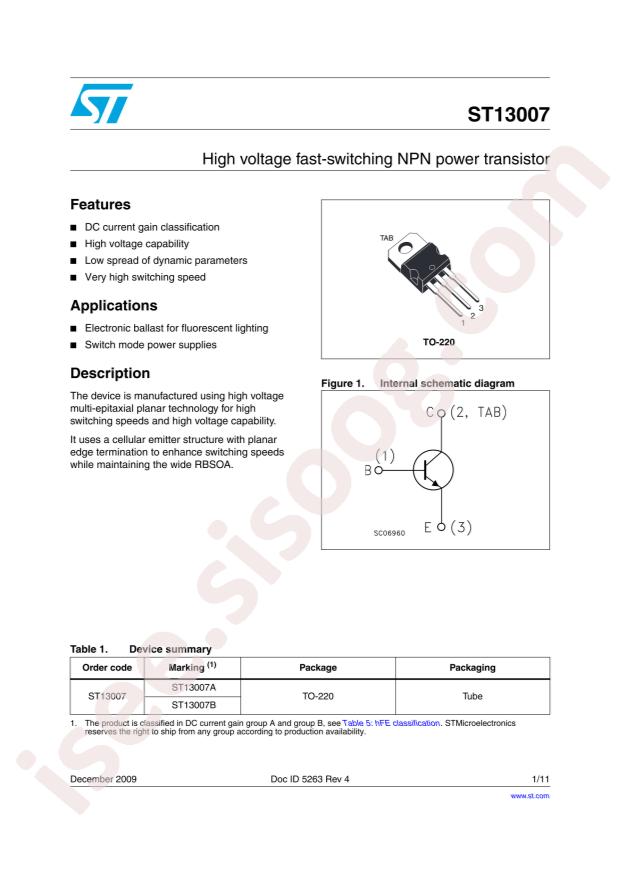

دیتاشیت ST13007
مشخصات دیتاشیت
| نام دیتاشیت |
ST13007
|
| حجم فایل |
258.247
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
11
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
STMicroelectronics ST13007
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
8A
-
Power Dissipation (Pd):
80W
-
Transition Frequency (fT):
-
-
DC Current Gain (hFE@Ic,Vce):
5@5A,5V
-
Collector Cut-Off Current (Icbo):
10uA
-
Collector-Emitter Breakdown Voltage (Vceo):
400V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
3V@8A,2A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
8A
-
Voltage - Collector Emitter Breakdown (Max):
400V
-
Vce Saturation (Max) @ Ib, Ic:
3V @ 2A, 8A
-
Current - Collector Cutoff (Max):
10µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
5 @ 5A, 5V
-
Power - Max:
80W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
ST13007
-
detail:
Bipolar (BJT) Transistor NPN 400V 8A 80W Through Hole TO-220AB
